ACRH11

Lift

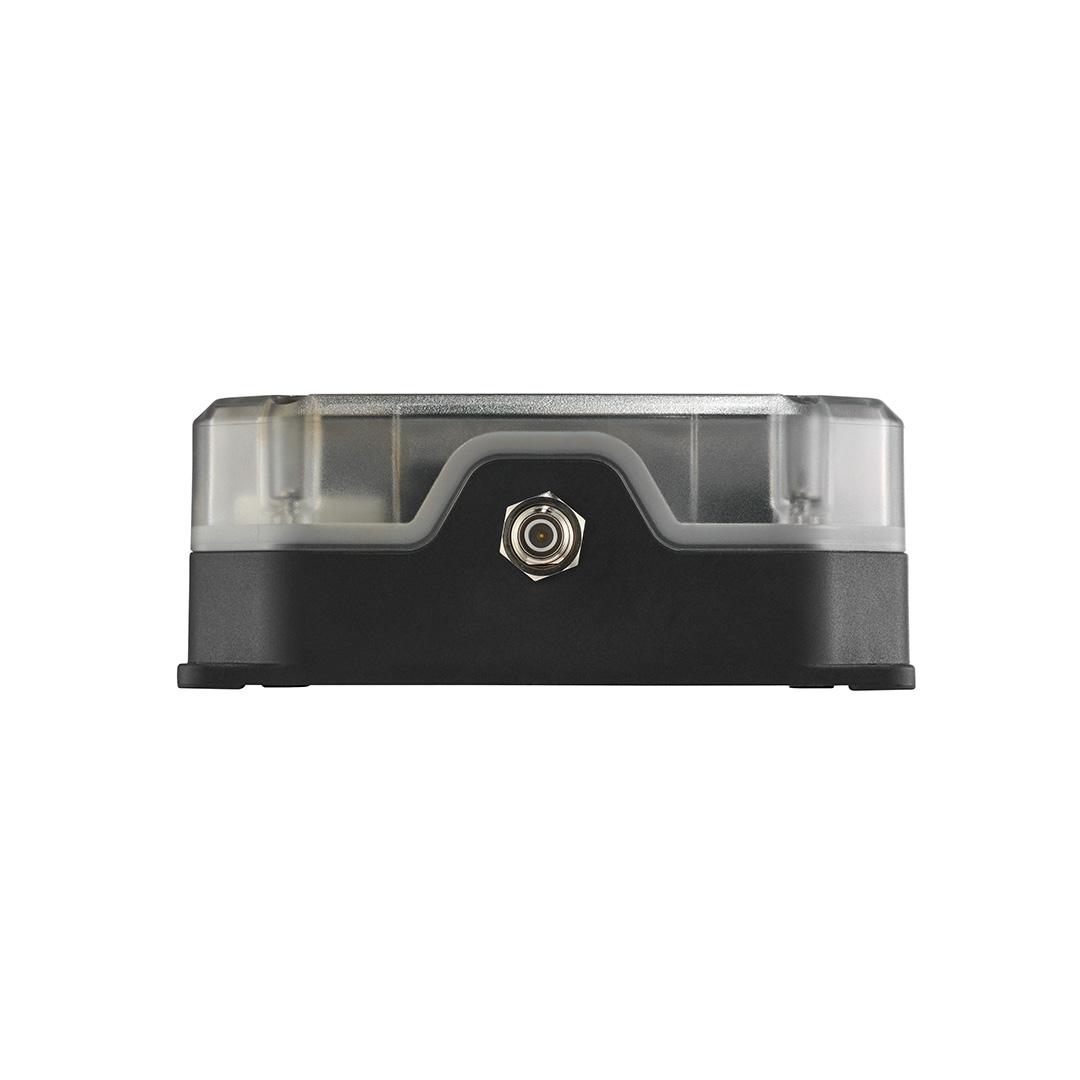

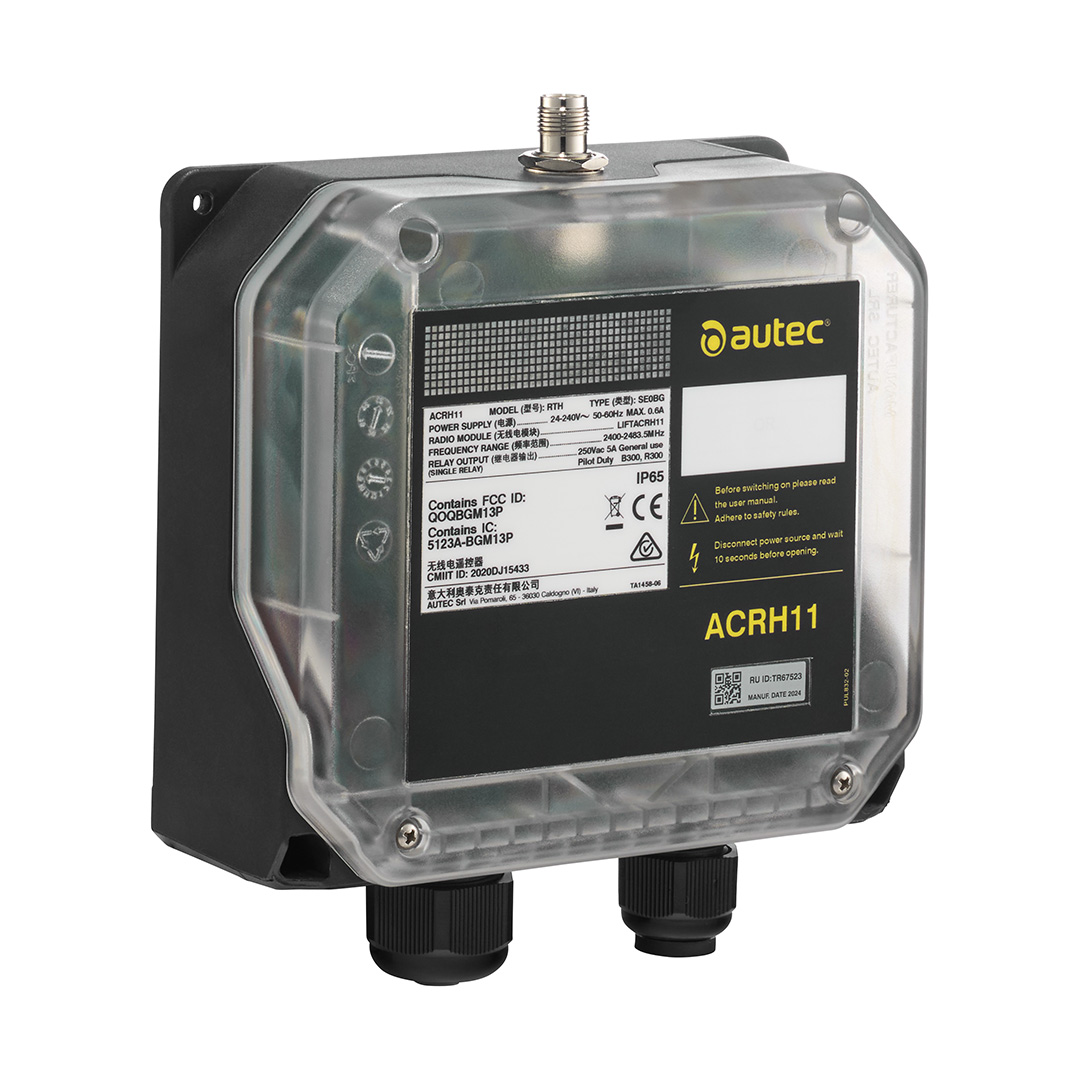

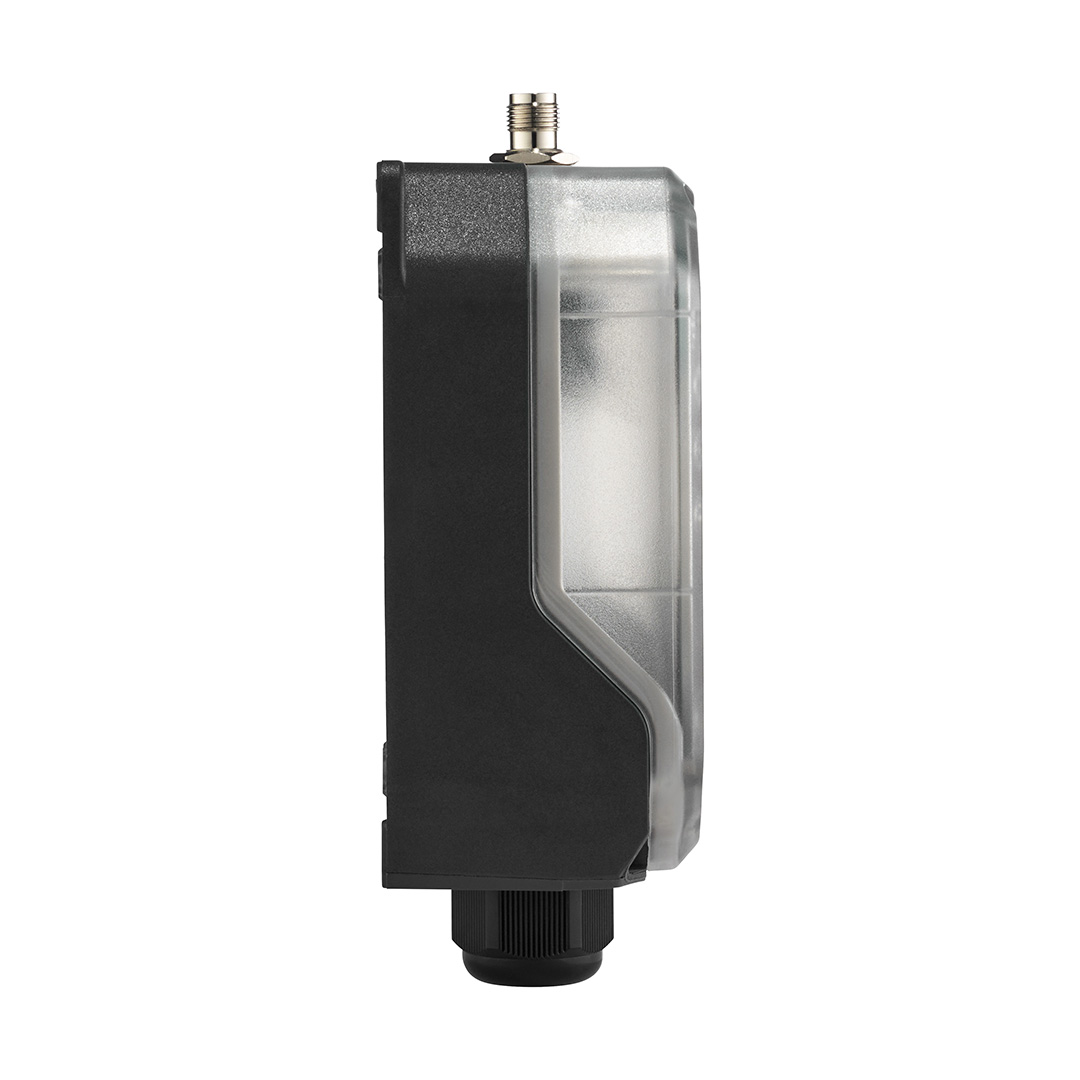

The highly compact base station operates with a wide range of input voltages, and has 11 onboard power relays, and provision for one expansion board that can provide additional outputs or other features. The semi-transparent cover allows to see the high-intensity flashing lamp inside which operates when the cableless control system is in use.
TECHNICAL DATA SHEET CONTACT US

TECHNICAL DATA SHEET

Performance of the General Safe Stop function (GSS)
SIL 2 / PL d; cat. 3
Power supply
 24 – 240 VAC (50-60 Hz)
Antenna internal
external optional
Max number of Optional Boards 1
Max number of outputs 11
Commands rated current
 5 A (250 VAC)
Rated current of STOP / Safety outputs 5 A (250 VAC)
Protection degree IP65 (Enclosure type 4)
Operating and storage temperature internal
Protection degree operating: (-20 °C) ÷ (+70 °C) / (-4 °F) ÷ (+158 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Connecting interfaces cable gland M20 and M25
plug 16 and 24 pin
Dimensions

150x134.5x60 mm (5.9x5.29x2.36 in)
Weight
1 kg (2.2 lb)
