| Power supply |
8-30 VDC |
|
Antenna
|
External. Antenna extension 1 or 5 meter optional.
|
|
Max number of outputs
|
8 analog (voltage)
16 analog PWM (8 bi-directional axes)
16 digital, also available via CANopen interface |
| Rated current of STOP / Safety outputs |
SO_1 = 2 A (30 VDC)
SO_2 = 2 A (30 VDC) |
|
Rated current of digital outputs
|
2 A (30 VDC) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, cat. 4 / SIL 3 |
|
Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061)
|
up to PL d, cat. 3 / SIL 2 |
|
Protection degree
|
|
|
Operating and storage temperature
|
operating: (-25 °C) ÷ (+70 °C) / (-13 °F) ÷ (+158 °F)
storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) |
|

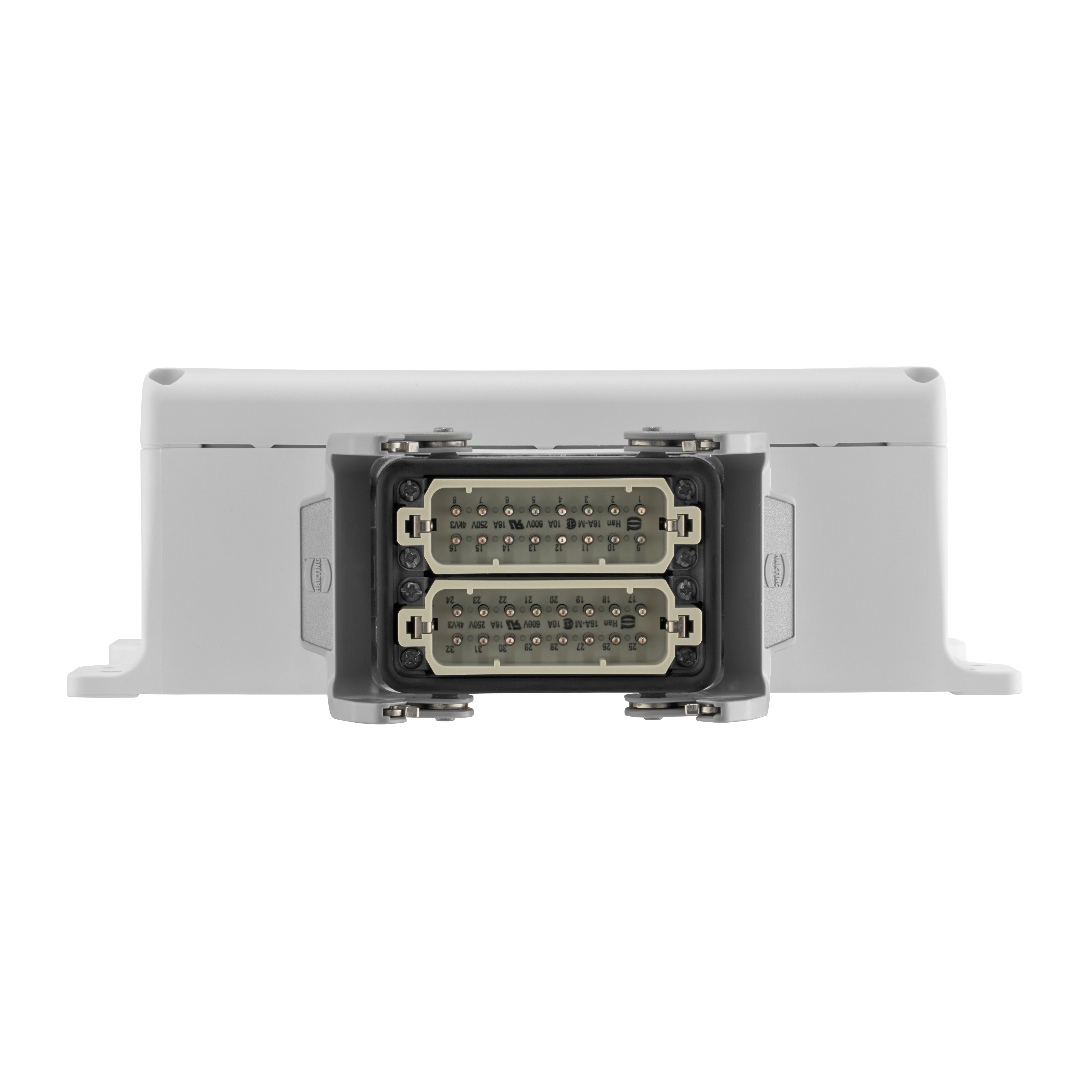

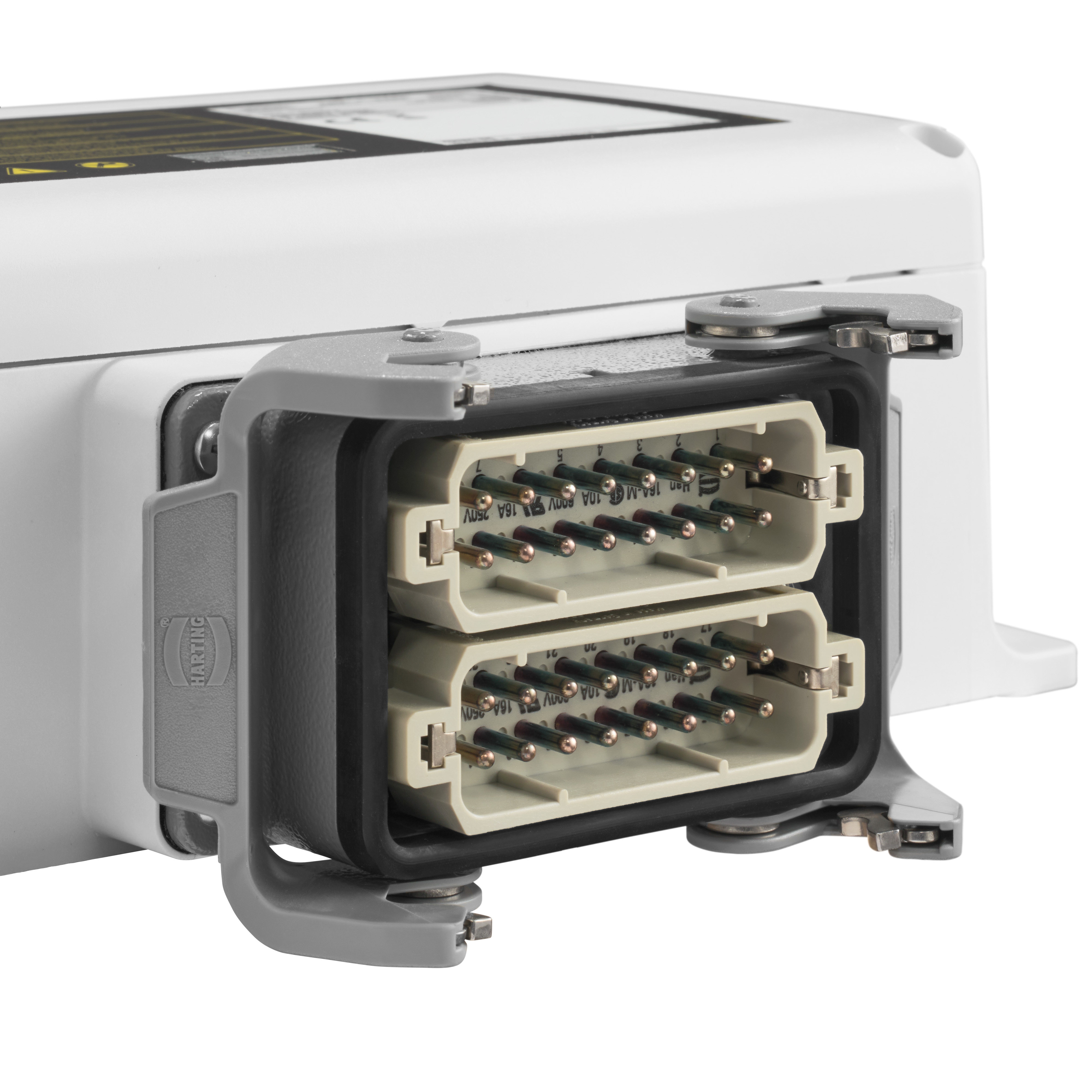

Connecting interfaces
|
Customizable – direct wiring on the solenoid valves; 32, 40, 50 or 72-pin plug |
| Dimensions |
240 x 186 x 83 mm
9.45 x 7.32 x 3.27 in
|
| Weight |
1.2 kg
2.7 lb
|
