COMPACT PJC
Dynamic+PCOMPACT is a transmitting unit used for the remote control of machinery in different sectors.

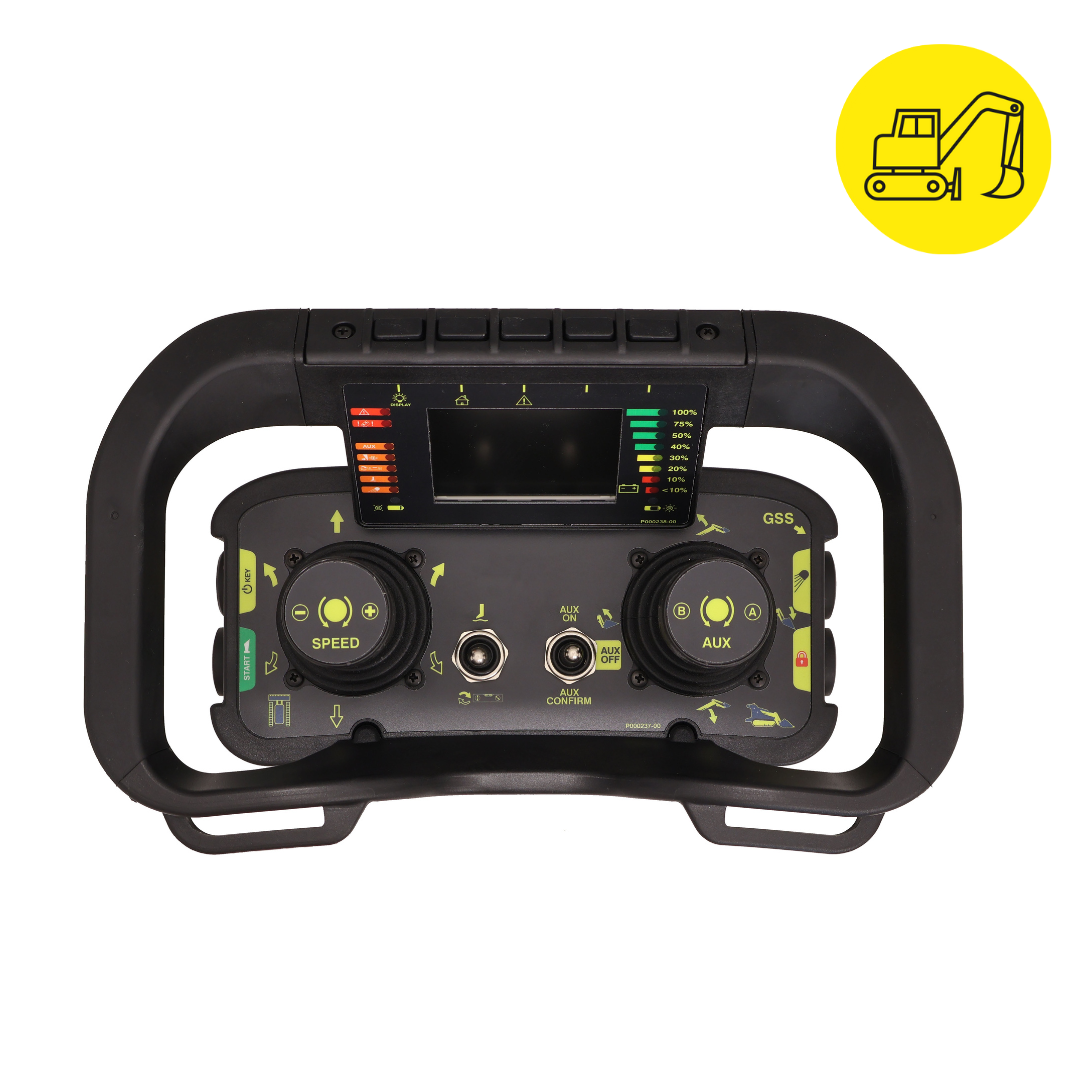

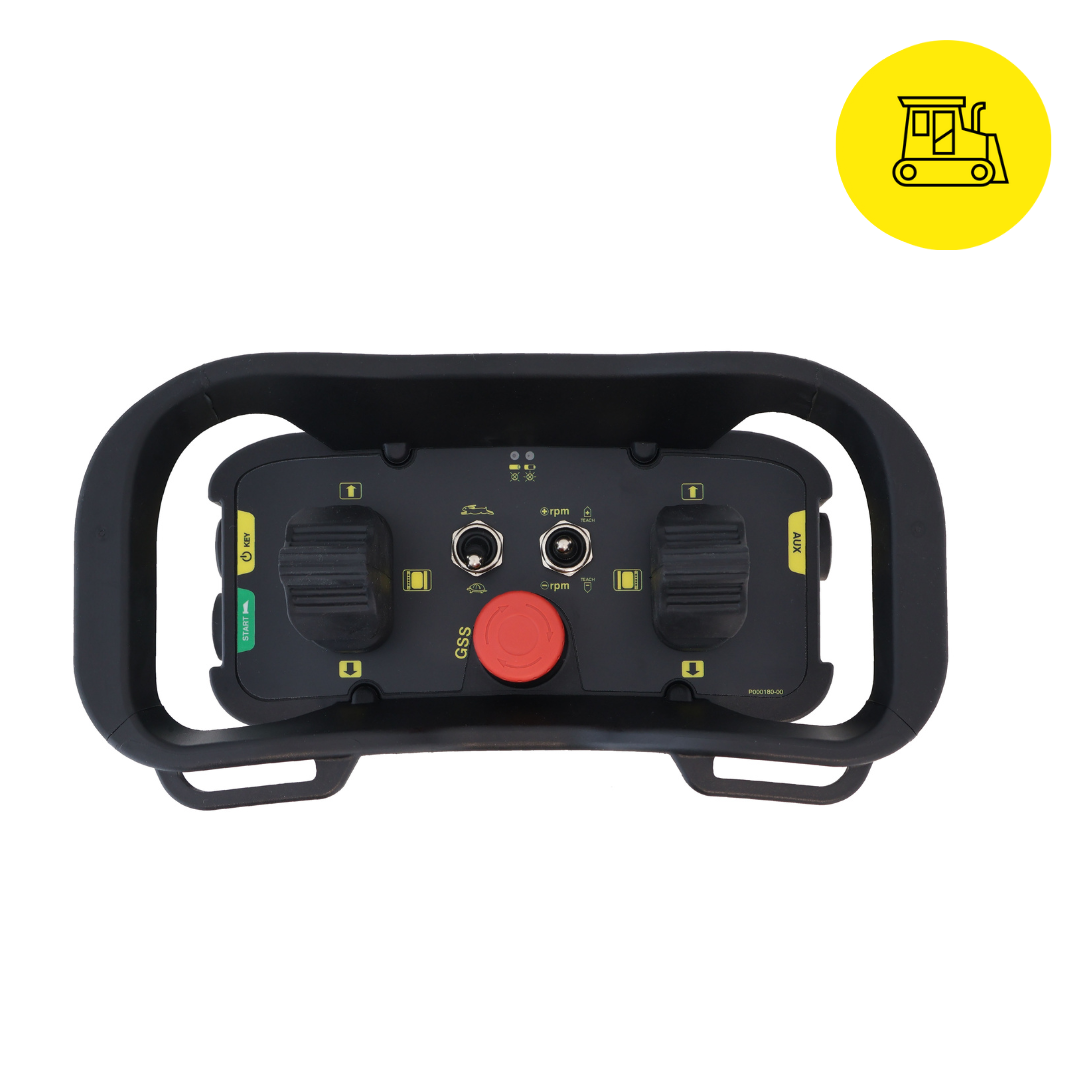

With a reliable radio link and compliance with functional safety requirements, this "compact" transmitter which can be carried on a waist belt or shoulder strap is suitable for use in difficult working environments. Designed with an ergonomic shape to prevent involuntary activation and issues caused by external interference when in use, its working area is optimized so that the actuators on the top and sides can be easily accessed/held. The upper frame has comfortable rubber handles and a 2.8" TFT colour display.
Mechanical and chemical resistance is guaranteed in all configurations as well as an IP65 protection degree and drop resistance of 1.5 m.
Accessories
Shoulder harness or waist belt
Removable NiMH or Li-Ion battery and battery charger
Options
2.8" TFT LCD display (240x320 pixels, 65536 colours)
32 signalling LEDs
LEDs on panel
Cable control
External buzzer
IR sensor
Marine environment protection
M-Key removable magnetic power keyswitch
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_1.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_2.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_4.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_6.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_3.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_5.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_1.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_2.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_4.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_6.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_3.jpg)
![](https://www.autecsafety.com/hubfs/prodotti/DYNAMIC%2BP/Portable_station/COMPACT_PJC/COMPACTPJC_5.jpg)
TECHNICAL DATA SHEET
Power supply |
7.4 VDC (Li-Ion Battery)
7.2 VDC (NiMH Battery) |
Frequency band
|
870/915 MHz and 2.4 GHz FHSS |
Hamming distance | ≥ 15 |
Typical working range
|
100 m 330 ft |
Average usage time with fully charged battery (continuous use at 20°C / 68°F) without display | 18.5 h (Li-Ion Battery) 11 h (NiMH Battery) |
Average usage time with fully charged battery (continuous use at 20°C / 68°F) with display
|
with 2.8" Display: 9 h (Li-Ion Battery)
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, SIL 3 |
Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) |
up to PL d, cat. 3 / SIL 2
|
Protection degree | IP65 (NEMA 4) |
Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) / (-13 °F) ÷ (+130 °F) storage: (-40 °C) ÷ (+85 °C) / (-40 °F) ÷ (+185 °F) |
Dimensions | 260 x 177 x 161 mm 10.20 x 6.90 x 6.30 in |
Weight | 1.8 kg 3.9 lb |
