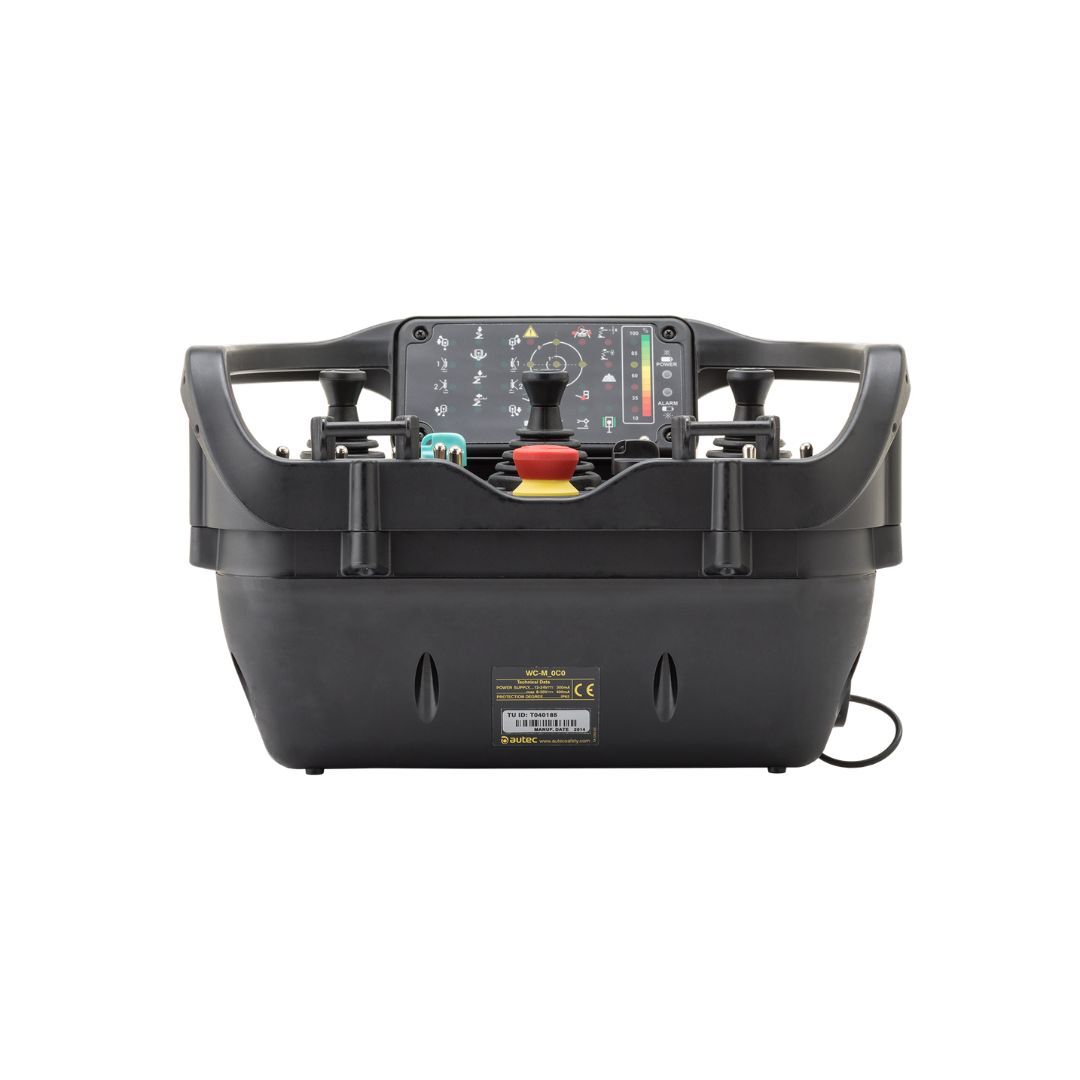

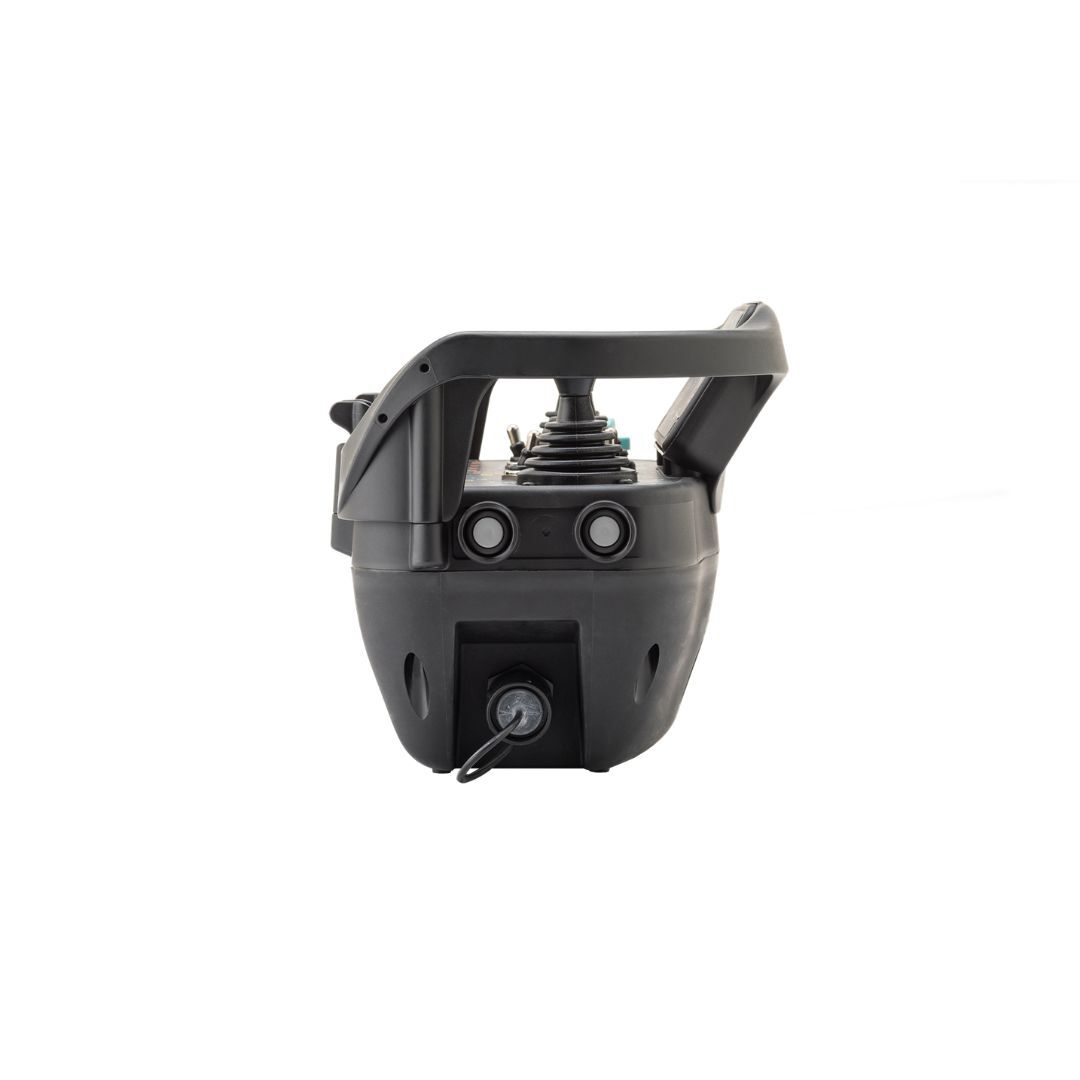

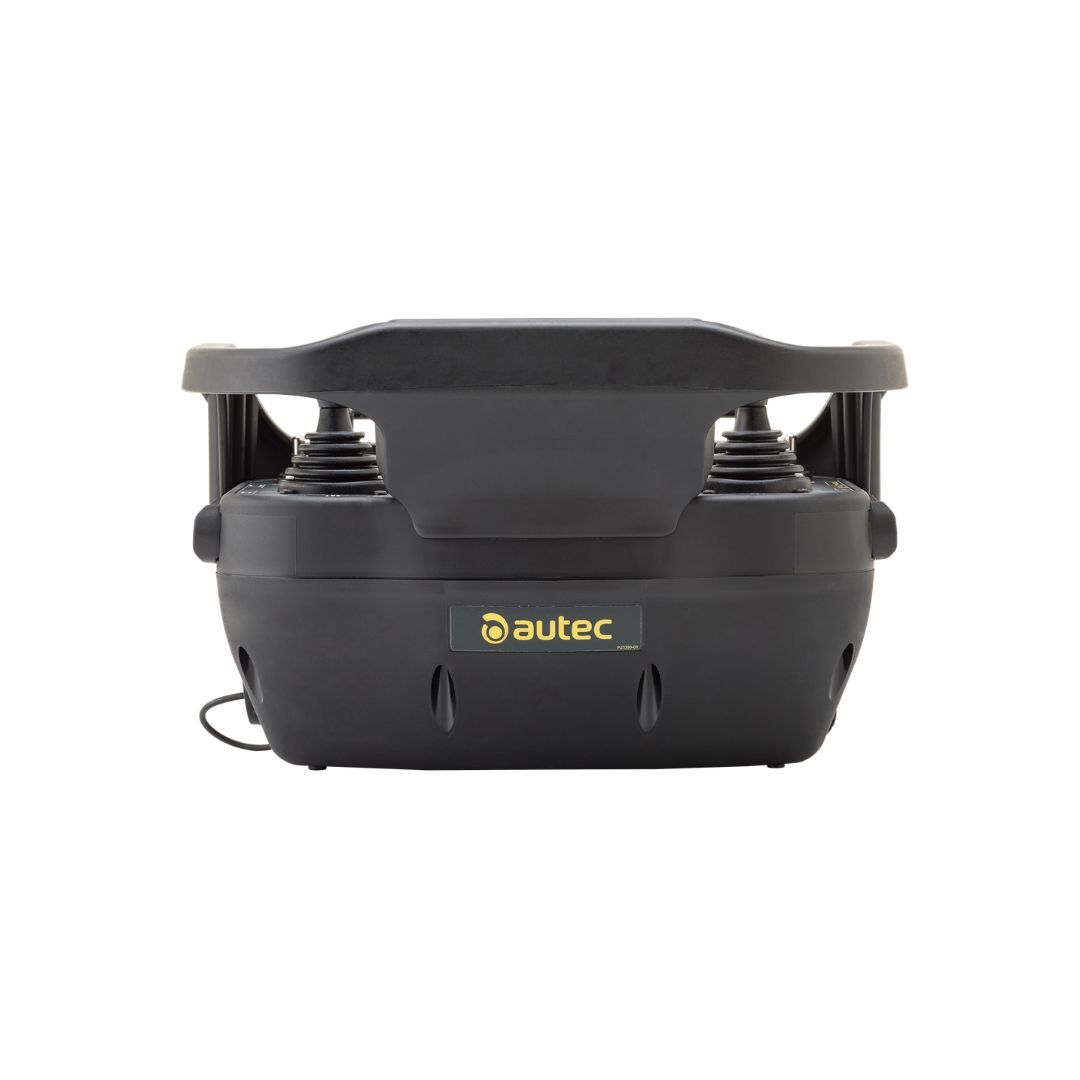

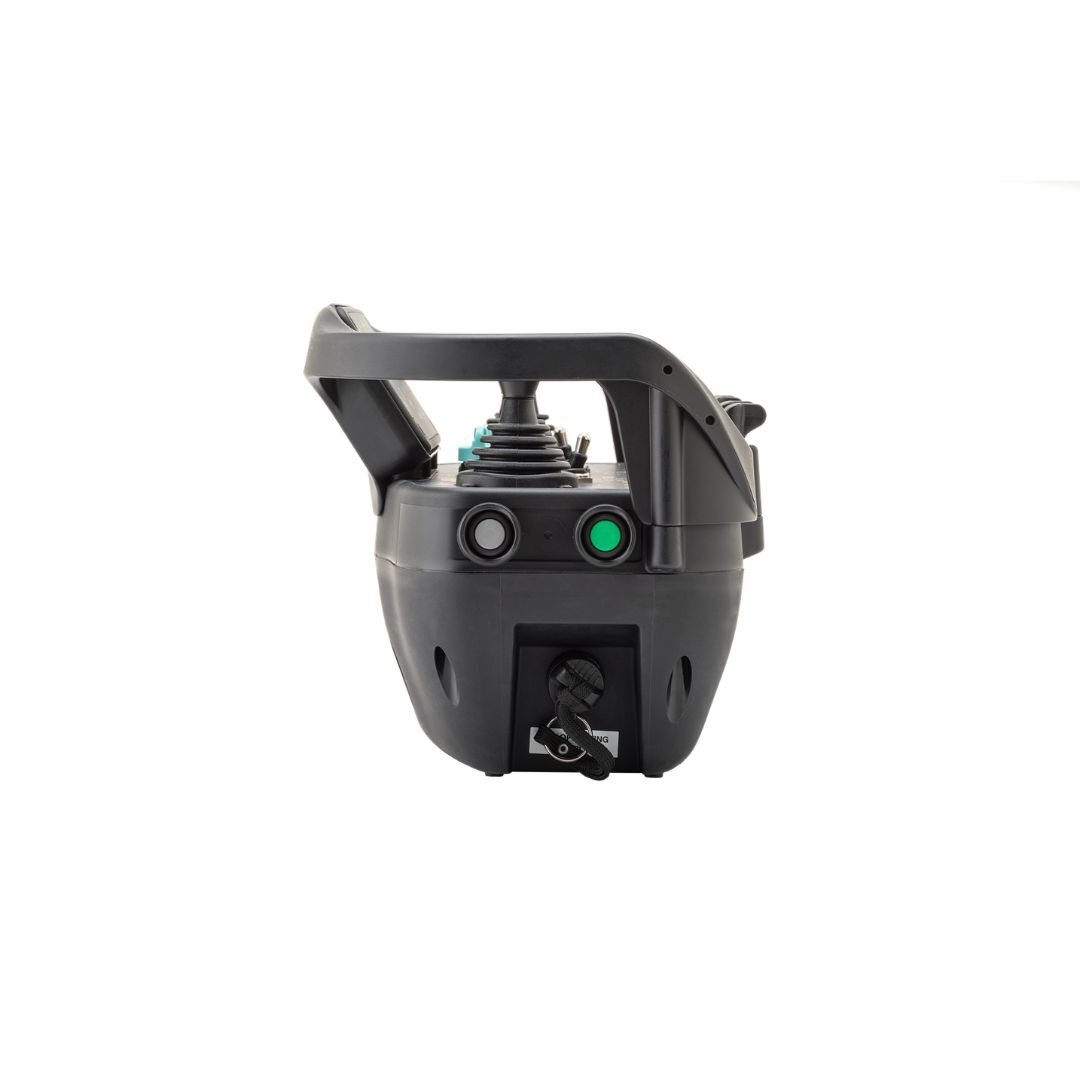

WA-M+

Cable control maxi size including 6 proportional outputs (voltage), up to 12 PWM proportional outputs (6 bi-directional axis), up to 16 digital outputs, a fieldbus output (CANopen 2.0A), 4 digital inputs and a removable power keyswitch.

Accessories
Shoulder harness
Waist belt

Options
4.3'' color display
2.7’’ transflective display
High-Efficiency LED panel
Customizable 32-LED matrix
10 or 19-pin cable
Cable Gland
Multi-pin plug
M12 connectors


STOP or EMERGENCY STOP
This cable command has a red pushbutton that can be used as either STOP or EMERGENCY STOP. This is possible thanks to the electrical characteristics of the pushbutton and provided that it is properly wired to the machine. STOP is defined as a function that allows to stop the machine and/or take it to safe conditions. EMERGENCY STOP, as defined in Machinery Directive, is a function that enables to avoid an actual or impending danger. The pushbutton used in the cable control can perform either a STOP or EMERGENCY STOP function because it conforms to all the applicable international standards as ISO EN 13850, IEC EC 60947-5-1 and IEC EC 60947-5-5. The use of this button as either STOP or EMERGENCY STOP depends on the machine. More specifically, it depends on its risk assessment, its characteristics, its application and the work area in which it operates.
