LINK DJN

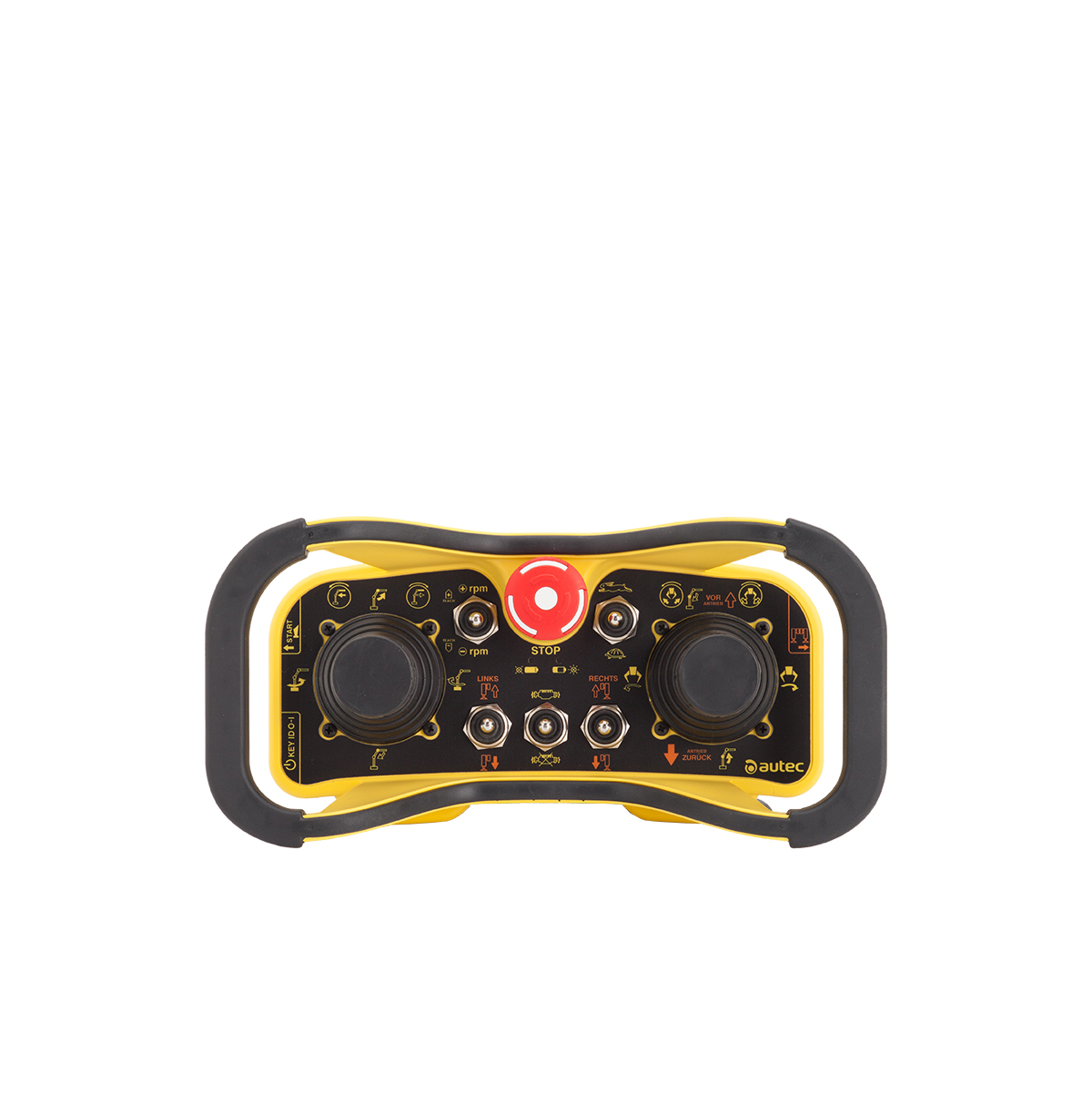

Dynamic+LINK is a transmitting unit specifically designed for the wireless control of hydraulic cranes with 4 to 6 linear joysticks.
The main features of this product are ergonomics and reliability which offer the user significant benefits. The data feedback option displays information on controls and machine status in real time on a 2.8" TFT LCD colour display.
The side buttons are flat and have a large touch surface which makes them well protected and easy to use. Customers can personalize the product with their own logo. LINK is available with FSA technology with bi-directional FHSS radio on a 870/915 MHz frequency band.
Accessories
Shoulder harness or waist belt
Removable NiMH or Li-Ion battery and battery charger
Options
2.8" TFT LCD display (240x320 pixels, 65536 colours)
32 signalling LEDs
LEDs on panel
Cable control
External buzzer
IR sensor
Marine environment protection
Removable mechanical power keyswitch (if Key ID 0-1 is not present)
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
Options
2.8" TFT LCD display (320x240 pixels, 65536 colors)
The display is equipped with 16 LEDs and includes five buttons for interaction. An optional encoder is also available to facilitate navigation. Suitable for both indoor and outdoor environments.
32 LED Matrix
32 diagnostic LEDs are available. The light intensity can be customized, and a NIGHT & DAY mode is also available.
LED on panel
Possibility to insert LEDs on the panel to provide feedback regarding specific maneuvers/selections on the machine.
Cable Control (Tether Cable)
The cable control allows connection of the cable station to the base station via cable, replacing the wireless connection with a wired connection.
External buzzer
The buzzer is used to emit sound signals in certain situations.
IR Sensor
Used to restrict the operating area of the remote control and operator.
Marine environment protection
For marine environment applications, we use corrosion proof components and the remote control is treated with an corrossion proof solvent, ensuring lasting protection against corrosion and damage caused by salt and humidity.
Removable mechanical ignition key
If the portable station does not have Key ID 0-1, it is possible to install the removable mechanical ignition key.
