A6/A6B

Air

The AIR Series handheld transmitters are light, compact and robust solutions, equipped with multi-function pushbuttons and a navigation menu to optimize functionality and settings according to the requested application.

They are available in two versions:
• with internal Li-Ion battery (A4, A6, A8) rechargeable through Docking Station;
• with two external Li-Ion batteries (A4B, A6B, A8B), battery charger and extractable power key switch kit for start-up which comes standard.

In both versions there is an "ID internal tx memory", which contains the unique and univocal address of the radio remote control along with the information that defines its mode of use. They can be combined with any AIR Series receiving unit.

Standard Accessories
Pouch with belt
Battery charger or Docking Station for recharge


Options

img-1
Accessory

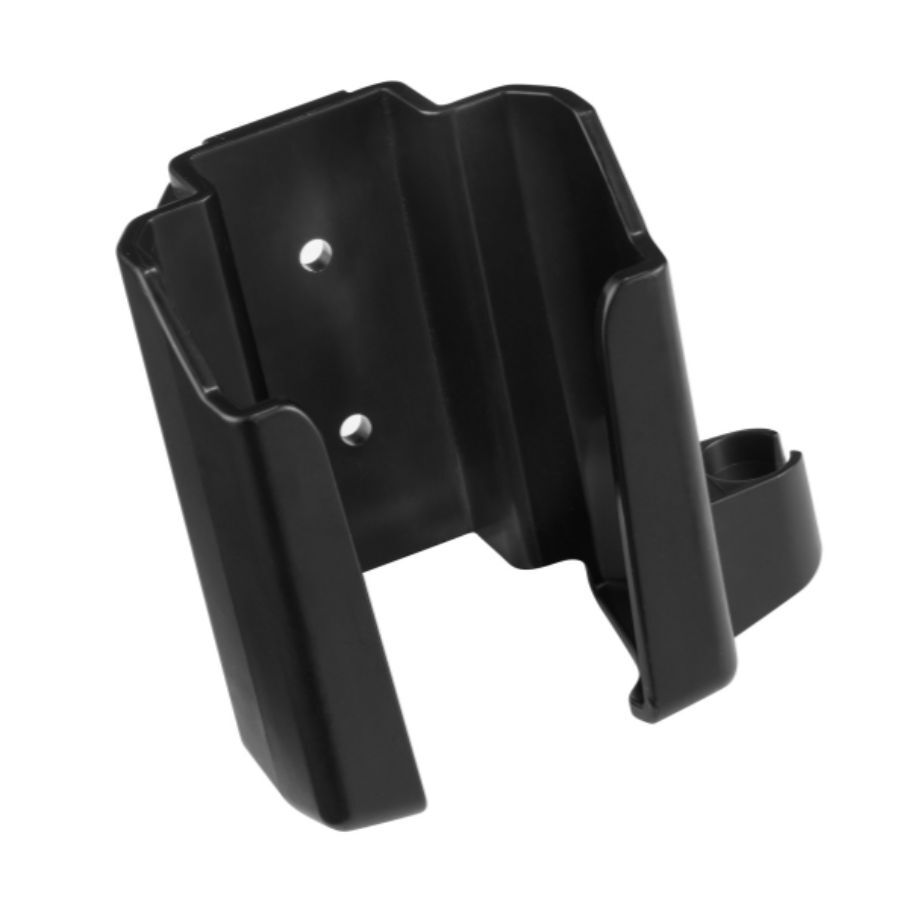

Wall mountable nest

Wall-mountable cradle for storage of transmitting unit.

TECHNICAL DATA SHEET

Frequency band 433.05-434.79 MHz (64 channels)
915-928 MHz (255 channels)
Hamming distance
≥9
Typical working range 75-100 m
240-330 ft
Average usage time with fully charged battery (continuous use at 20°C / 68°F) 40 h with internal Li-ion battery (A4, A6, A8)
16 h with external Li-ion battery (A4B, A6B, A8B)
Safety performance of the STOP function (EN ISO 13849-1) up to PL d
Protection degree
IP65 (NEMA 4)
Operating and storage temperature operating: (-20°C) ÷ (+55°C) / (-4°F) ÷ (+130°F)
storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)
Dimensions 64.5 x 179 x 37.5 mm
2.54 x 7.05 x 1.48 in
Weight 250 g
0.55 lb

Contact us for customized support.
