LK NEO 6 DF
AirLK NEO is a highly configurable pushbutton transmitting unit that can be used for the remote control of tower cranes, overhead cranes, hydraulic machines and countless other mobile applications.
This product open a wide range of functionalities inside the AIR Series technology, thanks to many available options and to a dual band radio with automatic search of free channel in FHSS (Frequency Hopping Spread Spectrum) at 870/915 MHz. The STOPfunction is classified up to PL e, SIL 3 (according to EN ISO 13849-1/EN IEC 62061). LK NEO has 4 LEDs for visualization of machine status and data logger for recording of remote control operations. It is available with 6, 8, 10 and 12 pushbuttons. In addition, there are 2 other versions (6 or 10 buttons) with a customizable 1.8" color display. This pushbutton can also be used for multiple radio control solutions (multi-transmitters, multi-receivers).
Accessories
Pouch with belt
Extractable NiMH or Li-Ion battery with charger
Actuators
Potentiometer
Rotary Switch
Toggle Switch
Pull-to-operate Switch
Side button
Options
Dual-band radio (434/915 MHz)
The CCS are equipped with a radio that can operate on two distinct frequencies. Frequencies must be set according to the target market.

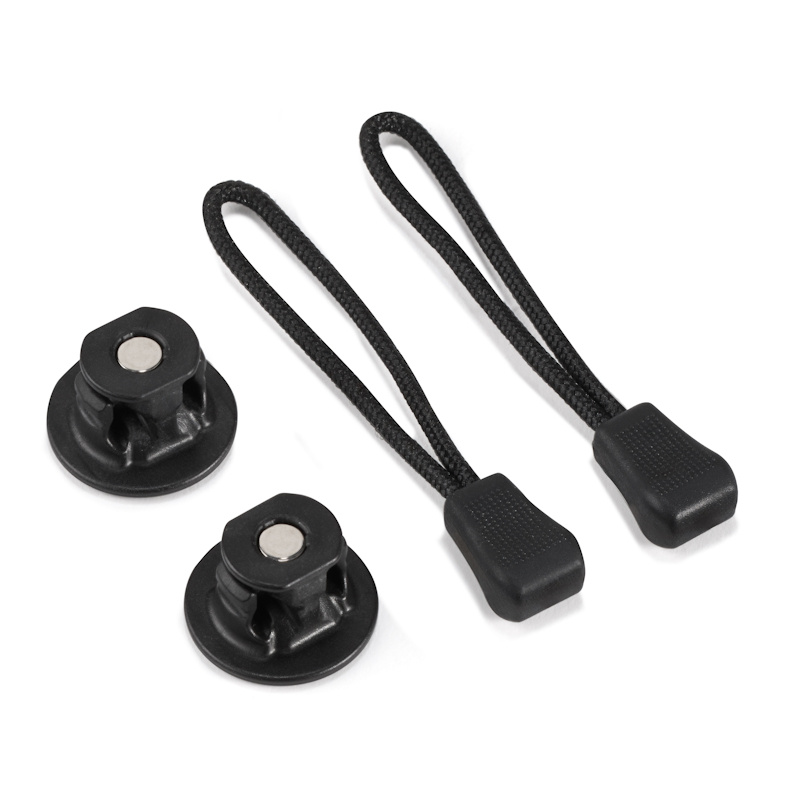

Removable magnetic ignition key
M-key magnetic key for remote control ignition.

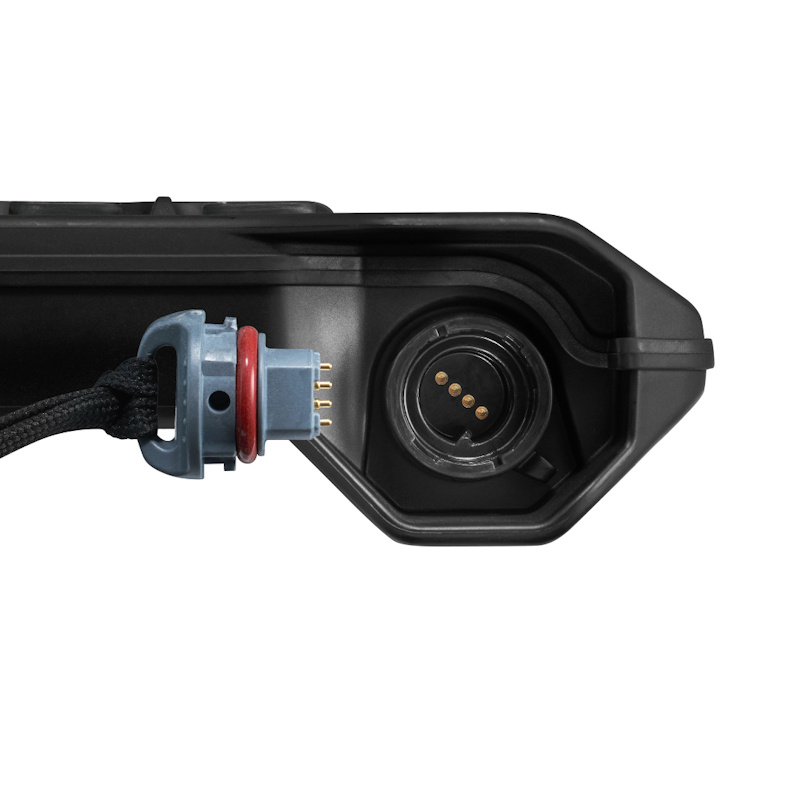

Removable mechanical ignition key
ID 0-1 mechanical key for remote control ignition.

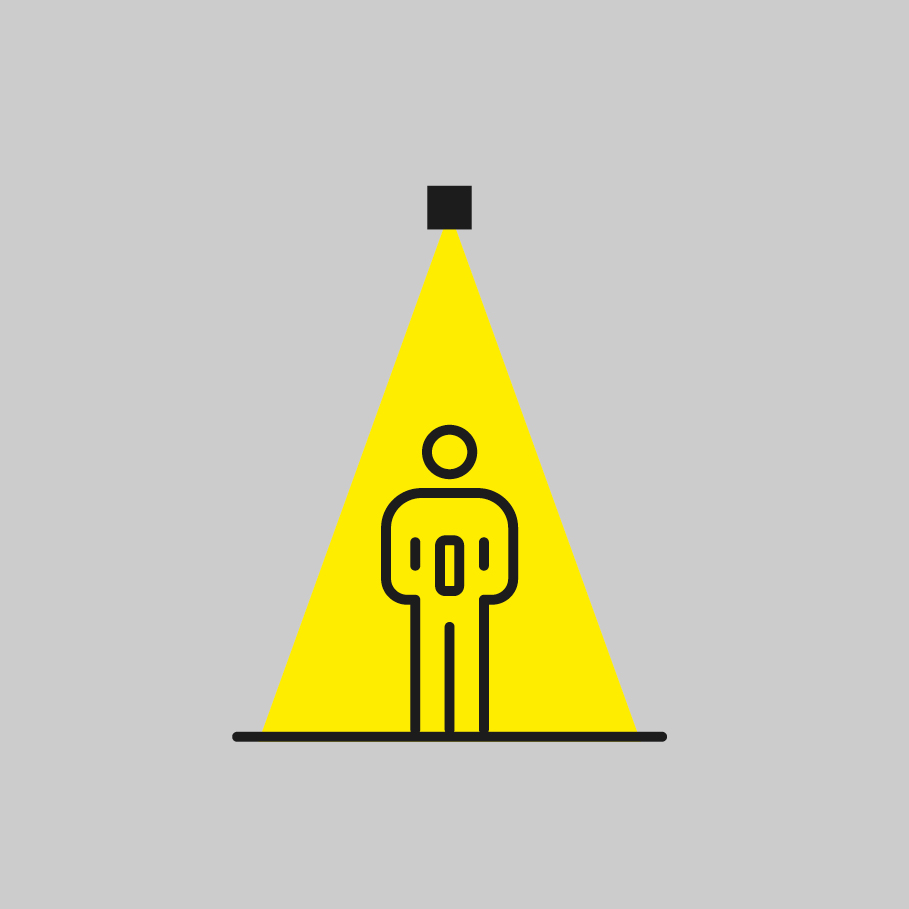

IR Sensor
Used to restrict the operating area of the remote control and operator.

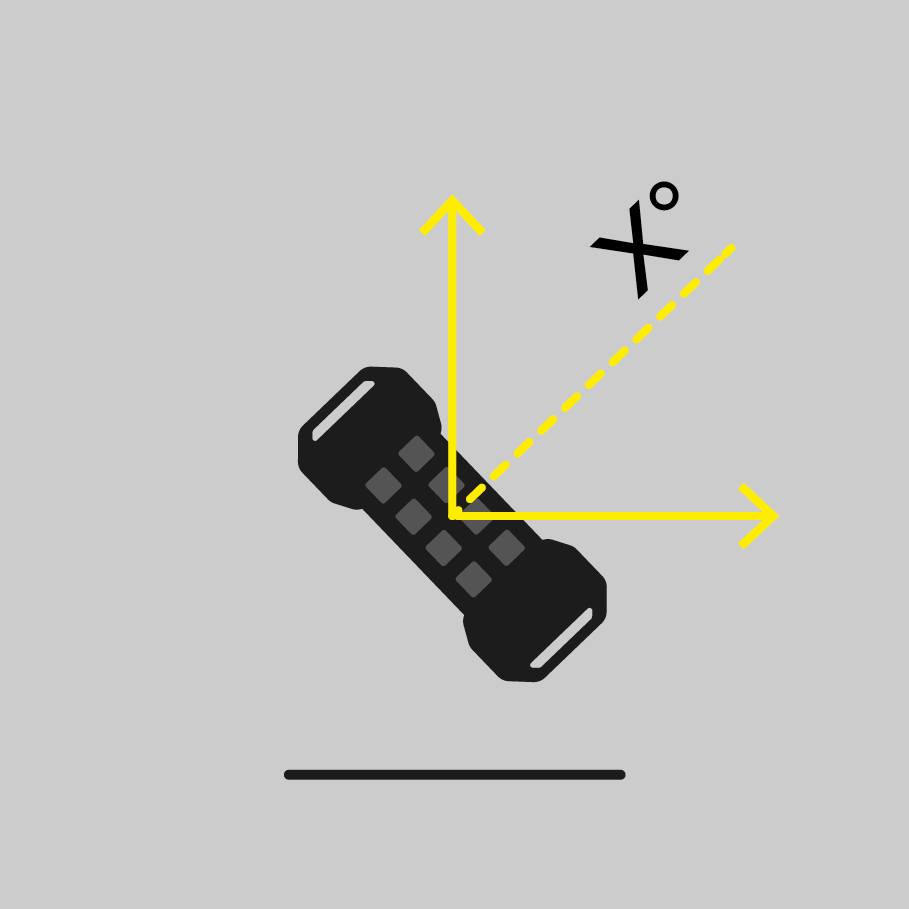

Zero-G sensor
The Zero-G sensor activates in case of impact, throwing, rolling, falling from a height of over 1 meter, or tilting beyond a preset angle of the transmitting unit.

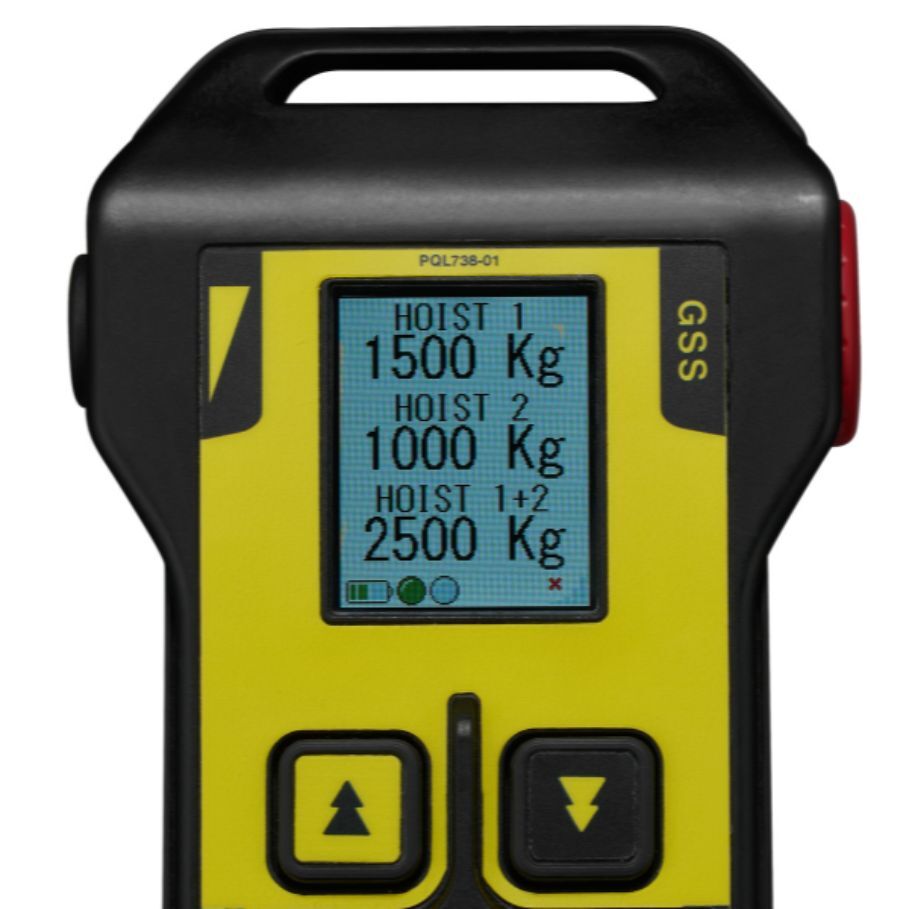

1.8" color display (128x160 pixels)
The display is programmed to show signals in the form of icons or strings, depending on the preferences set by the customer. Suitable for both indoor and outdoor environments.

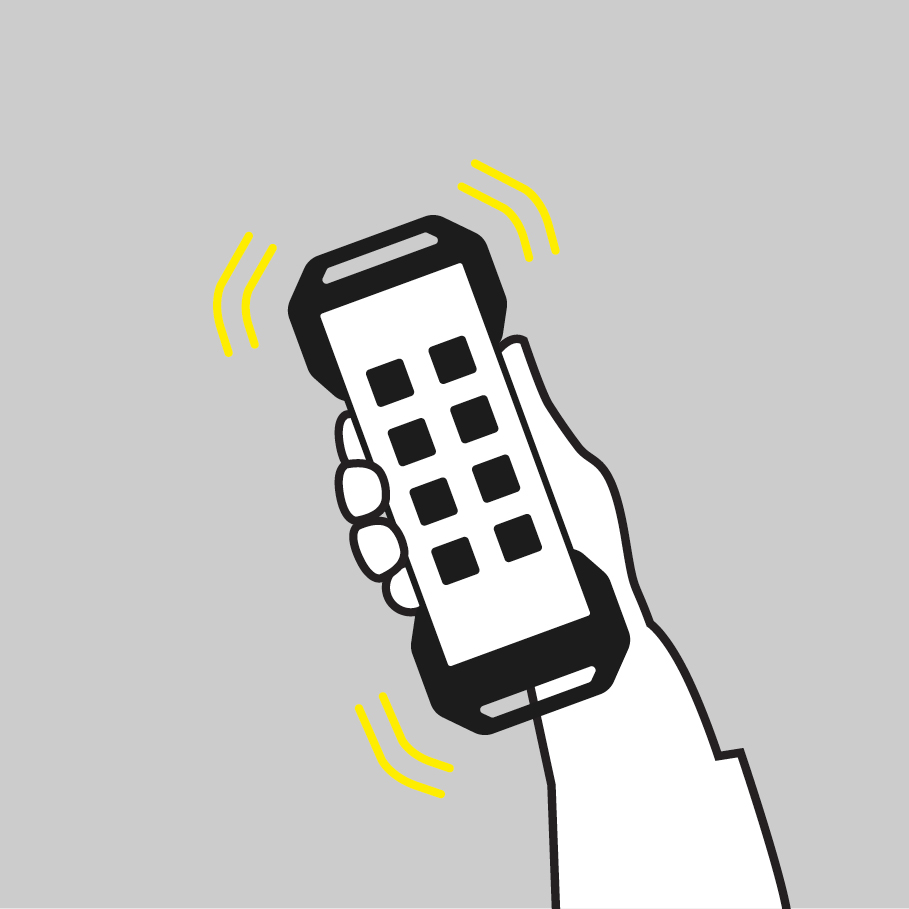

Haptic Feedback
Mainly adopted in noisy environments, this option allows the portable station to vibrate in certain situations.
Enabling switch
It enables all or some of the remote control commands only when the button is held in the intermediate position by the operator; if the button is pressed firmly or fully released, those commands cannot be used.

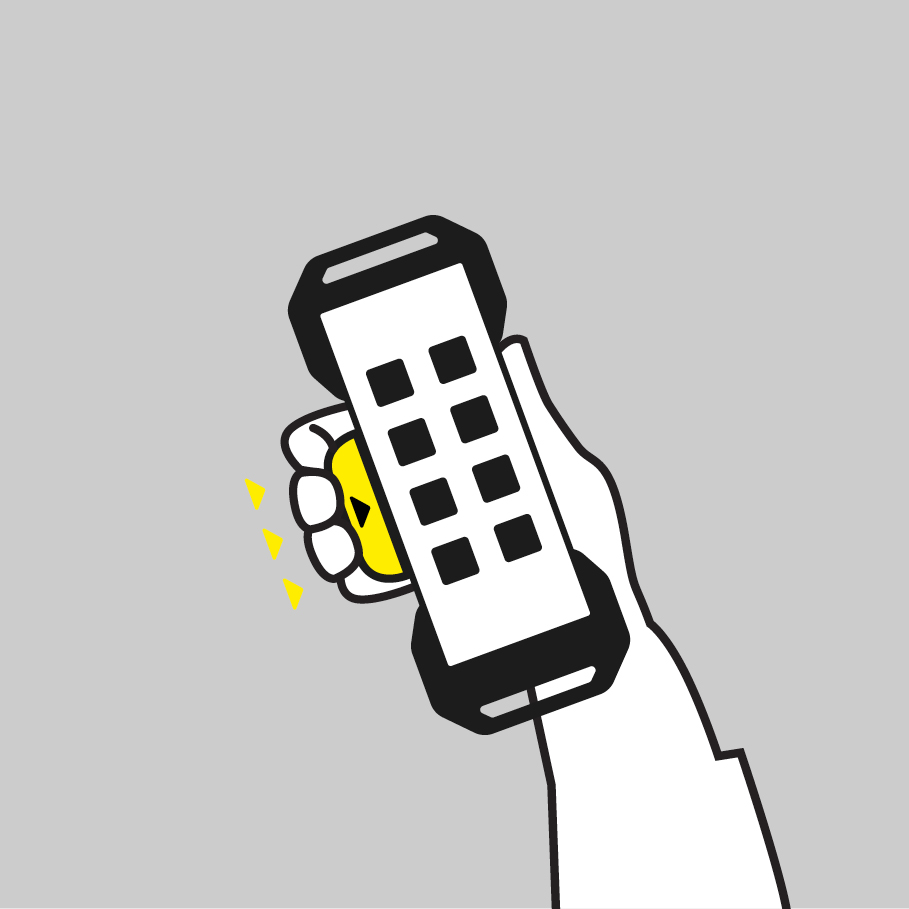

Enabling&STOP
It allows the safe start of the remote control only when the 3-position button is held in the intermediate position by the operator. Releasing or fully pressing the button enables the operator to immediately stop the machine.

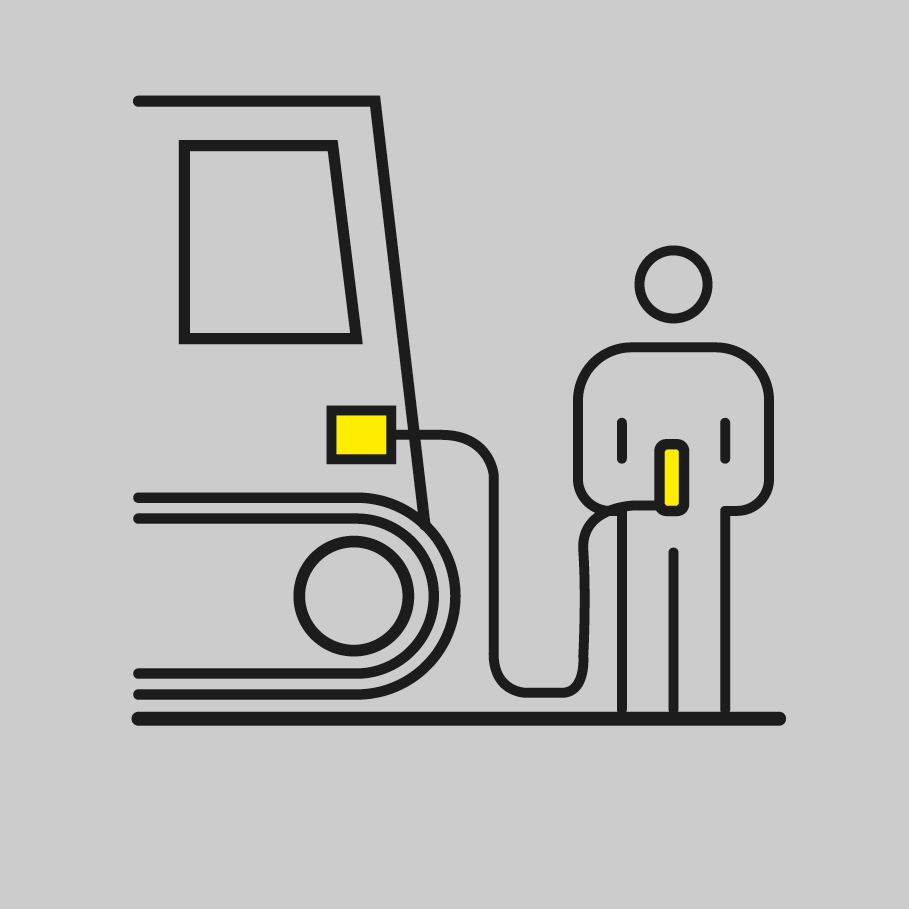

Cable Control (Tether Cable)
The cable control allows connection of the cable station to the base station via cable, replacing the wireless connection with a wired connection.
