SK4

Air

The SIDEKICK transmitting unit is safe, reliable and compact. It was conceived by AUTEC for applications with a limited number of actuators. The unit has a dual band radio with automatic search of free channel in FHSS (Frequency Hopping Spread Spectrum) at 870/915 MHz and is very portable thanks to an ergonomic design, extremely reduced weight and an inclined control panel. The STOP function is classified up to PL e, according to EN ISO 13849-1. SIDEKICK has 4 LEDs for visualization of machine status and a data logger for the recording of the commands sequences operated by the remote control. It can also be used for multiple radio control solutions (multi-transmitters, multi-receivers).

Accessories
Waist belt
Cable with USB connector and AC power or car jack, to recharge the Li-Ion internal battery

Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button

TECHNICAL DATA SHEET CONTACT US

Options

img-1

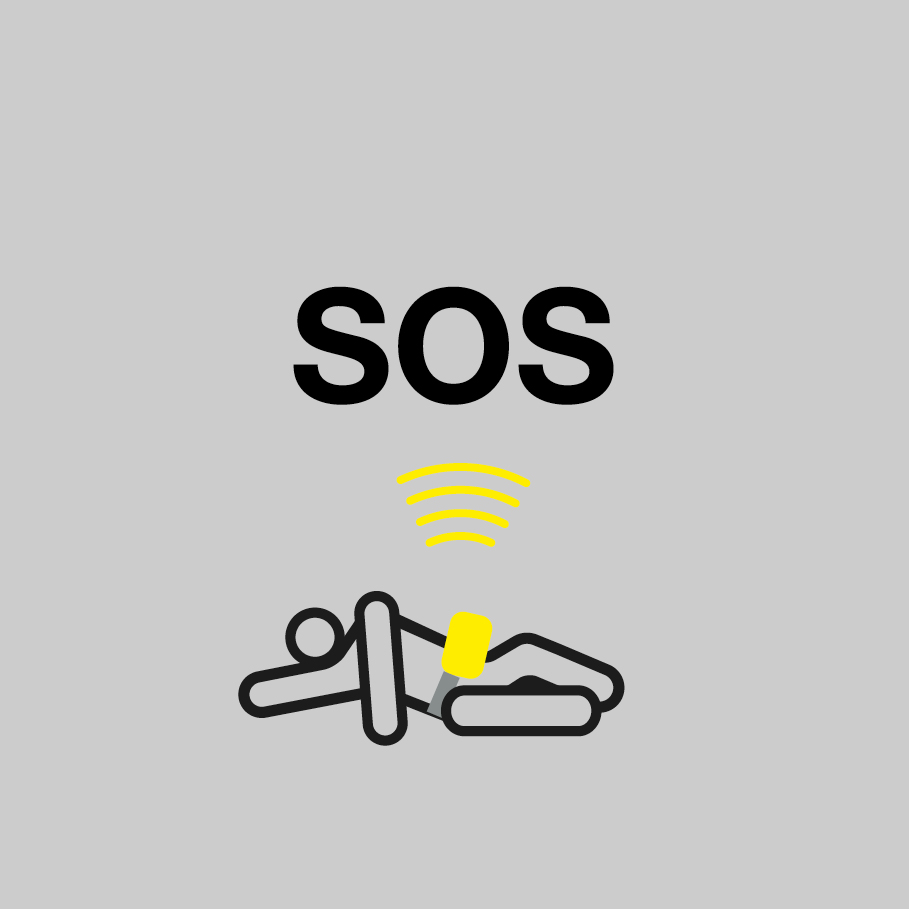

Emergency device

Actuator setup for emergency call and intermittent brake

It enables a quick assistance request and effective machine control in emergency situations.

img-2

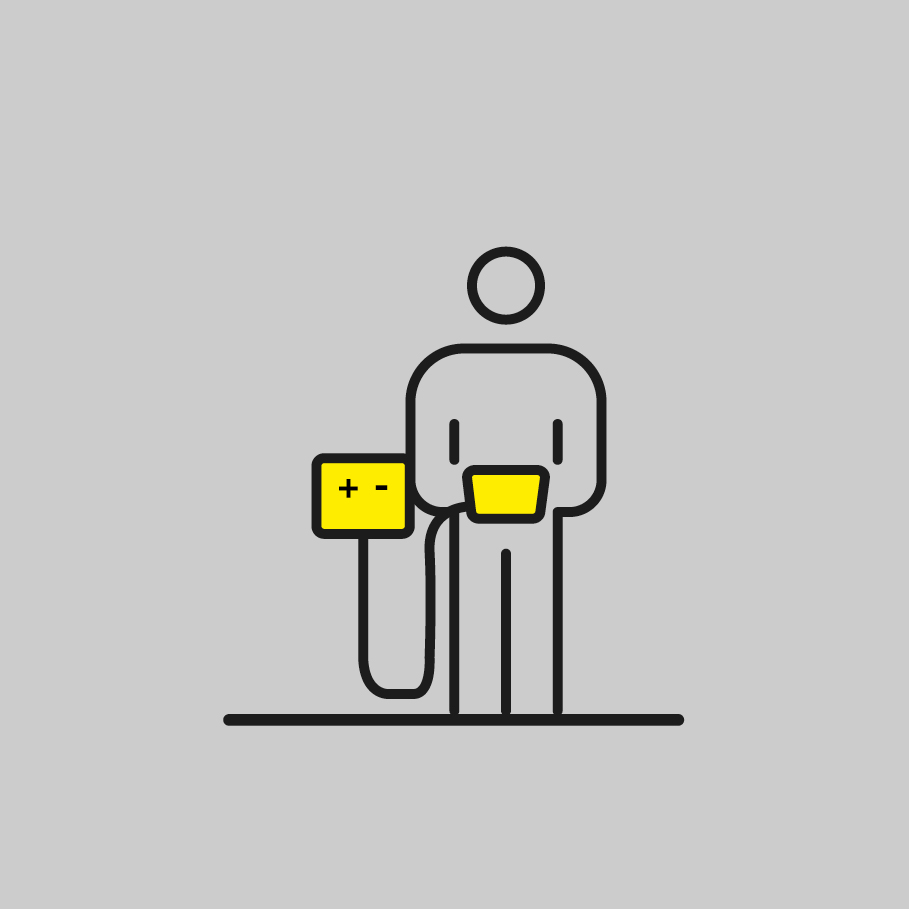

Connectivity

Usage also during charging phase

To improve work efficiency, the portable station can also be used during the charging phase.

TECHNICAL DATA SHEET

Power supply
3.7 VDC with Li-ion battery
Frequency band
 863-870 MHz (128 channels)
915-928 MHz (255 channels)
Typical working range 100 m
330 ft
Average usage time with fully charged battery (continuous use at 20°C / 68°F) > 16 h
Safety performance of the STOP function (EN ISO 13849-1)
up to PL e
Protection degree
 IP65 (NEMA 4)
Operating and storage temperature operating: (-20 °C) ÷ (+55 °C) / (-4 °F) ÷ (+130 °F)
storage: (-40 °C) ÷ (+70 °C) / (-40 °F) ÷ (+158 °F)
Dimensions

138 x 60 x 118 mm
5.43 x 2.36 x 4.65 in
Weight
450 g
0.992 lb

Contact us for customized support.
