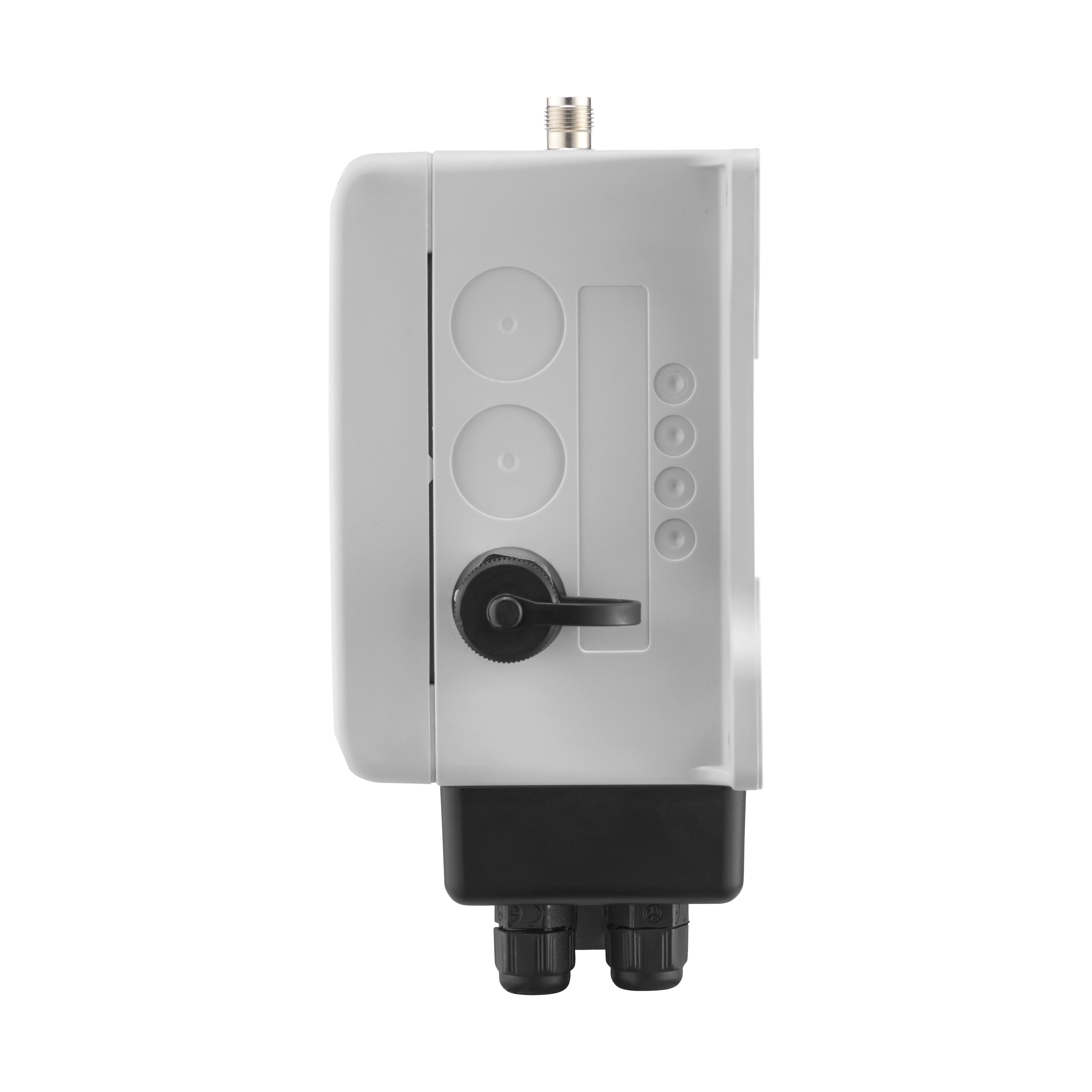

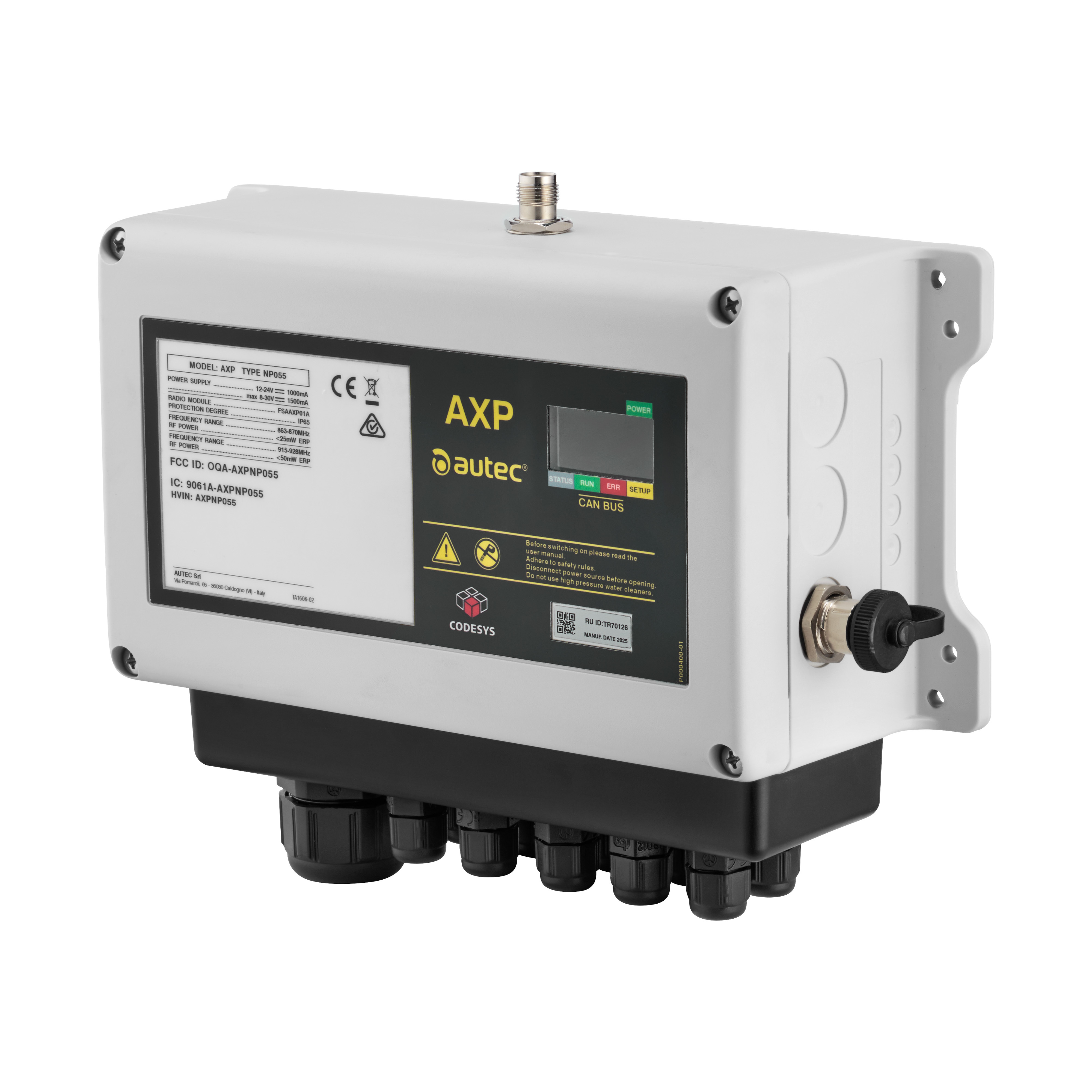

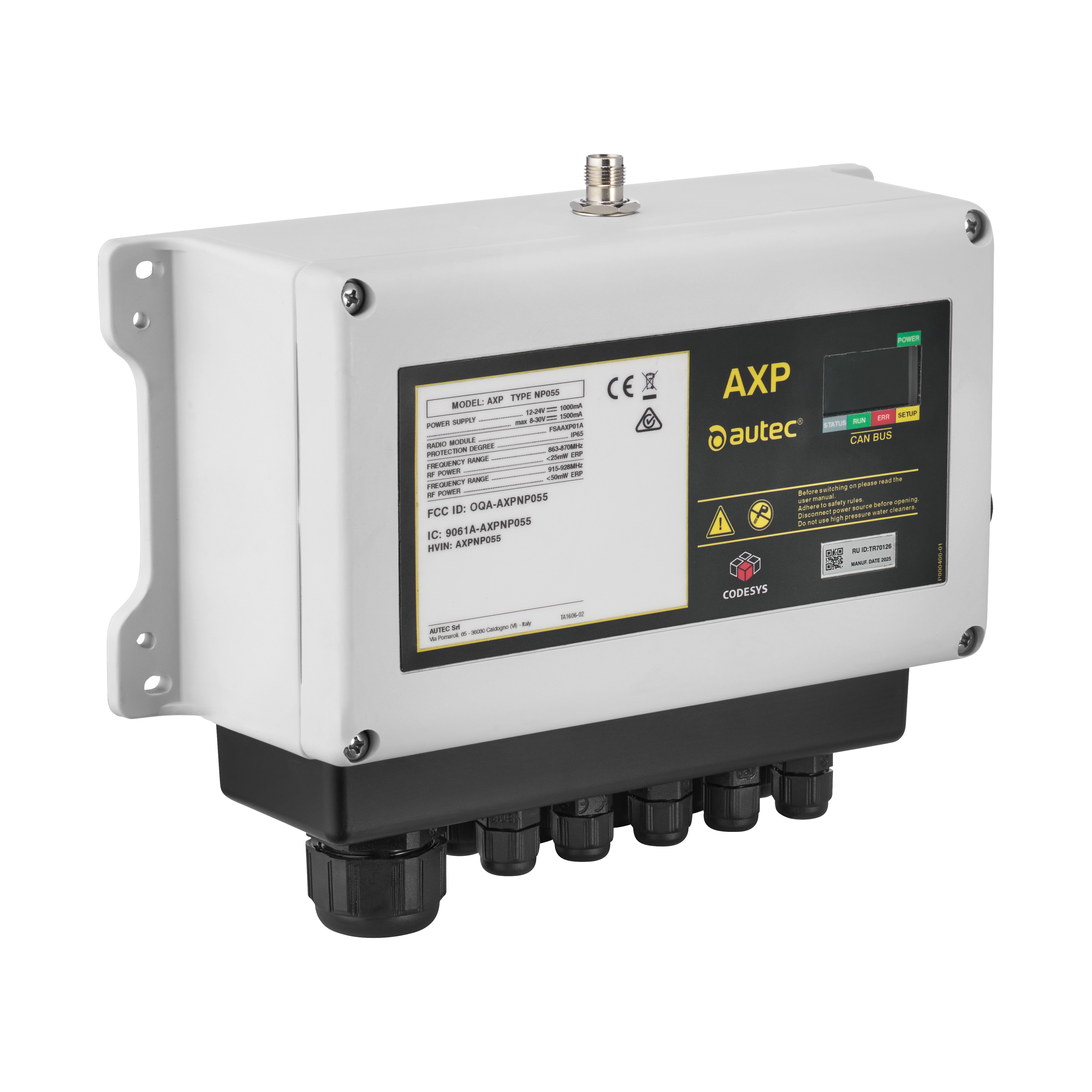

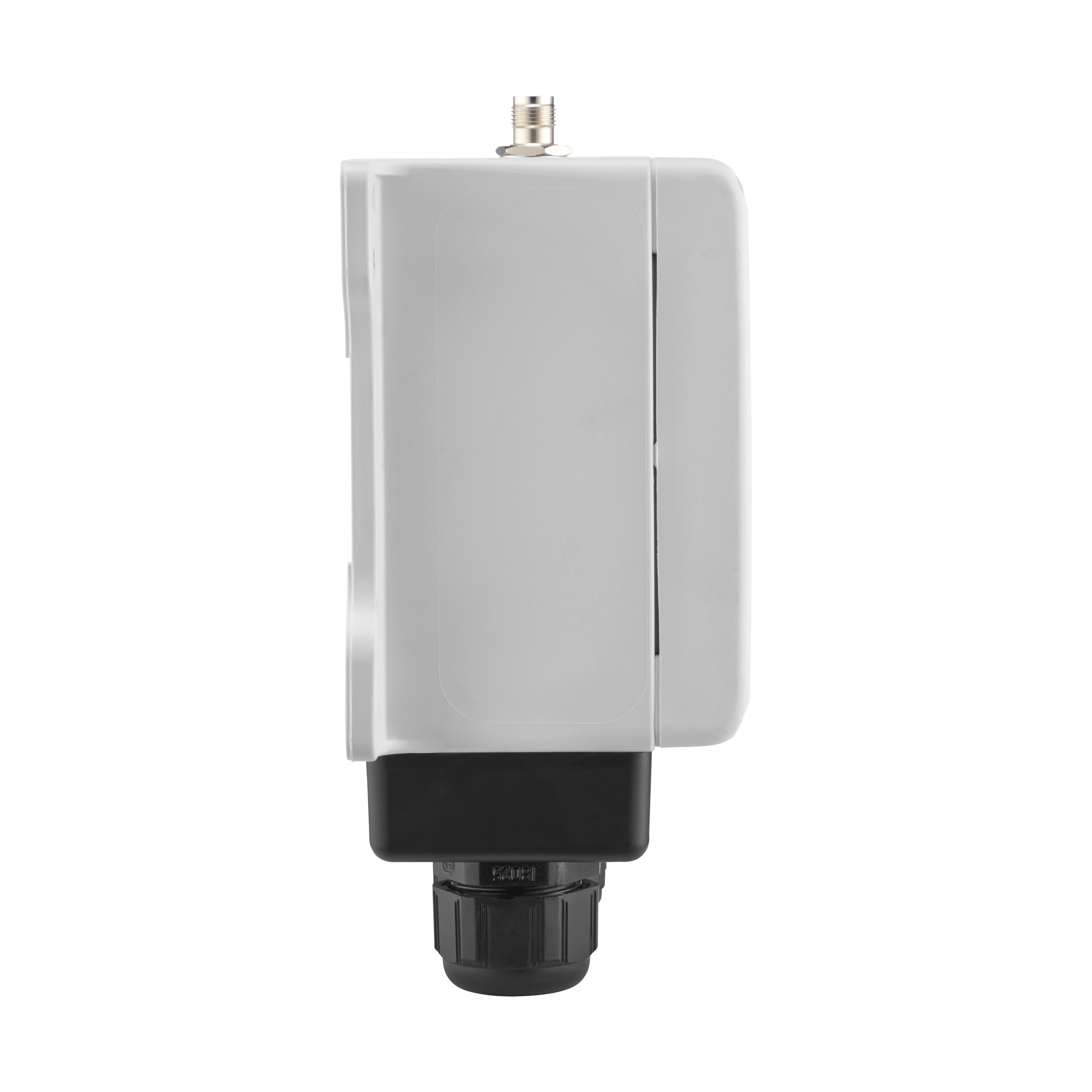

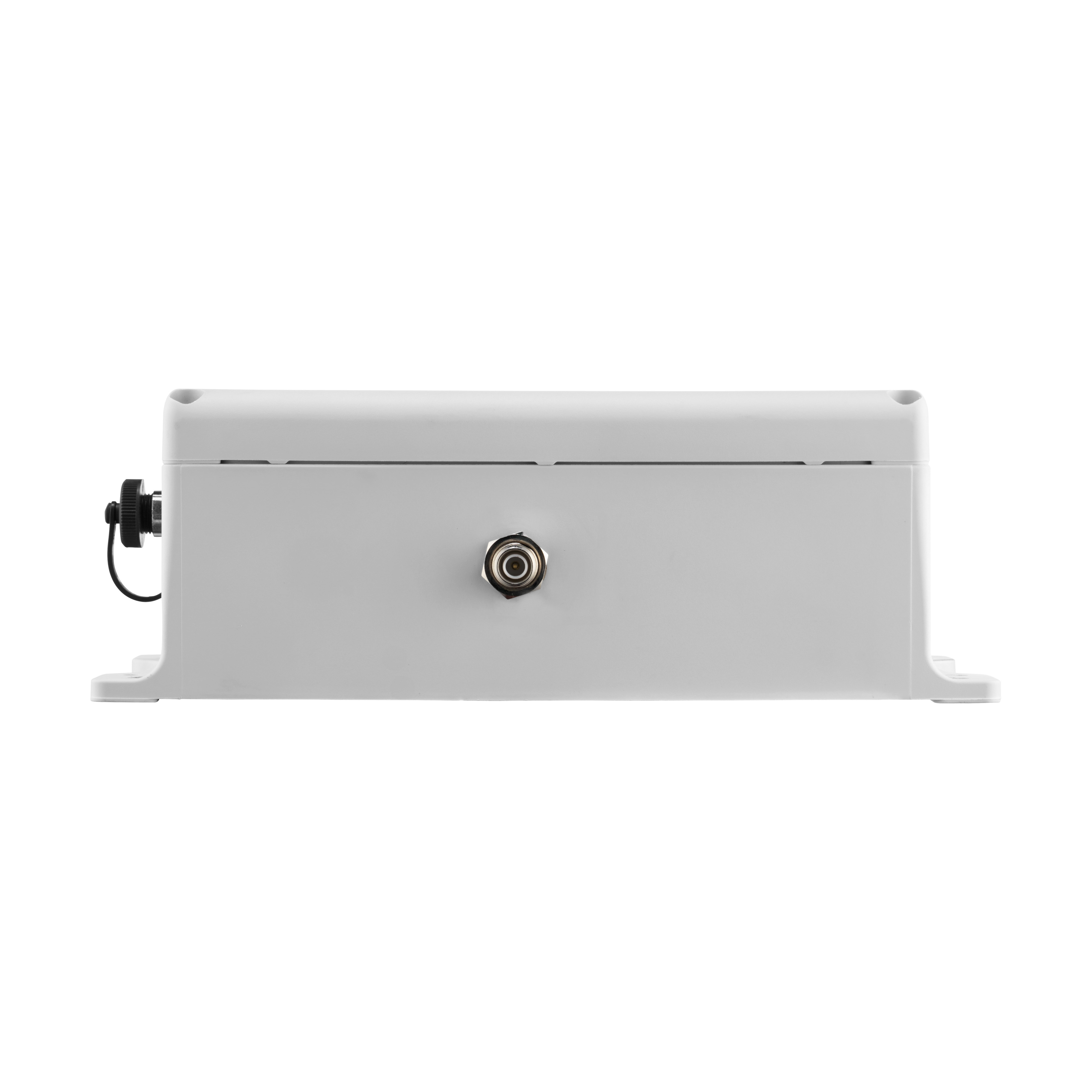

AXP

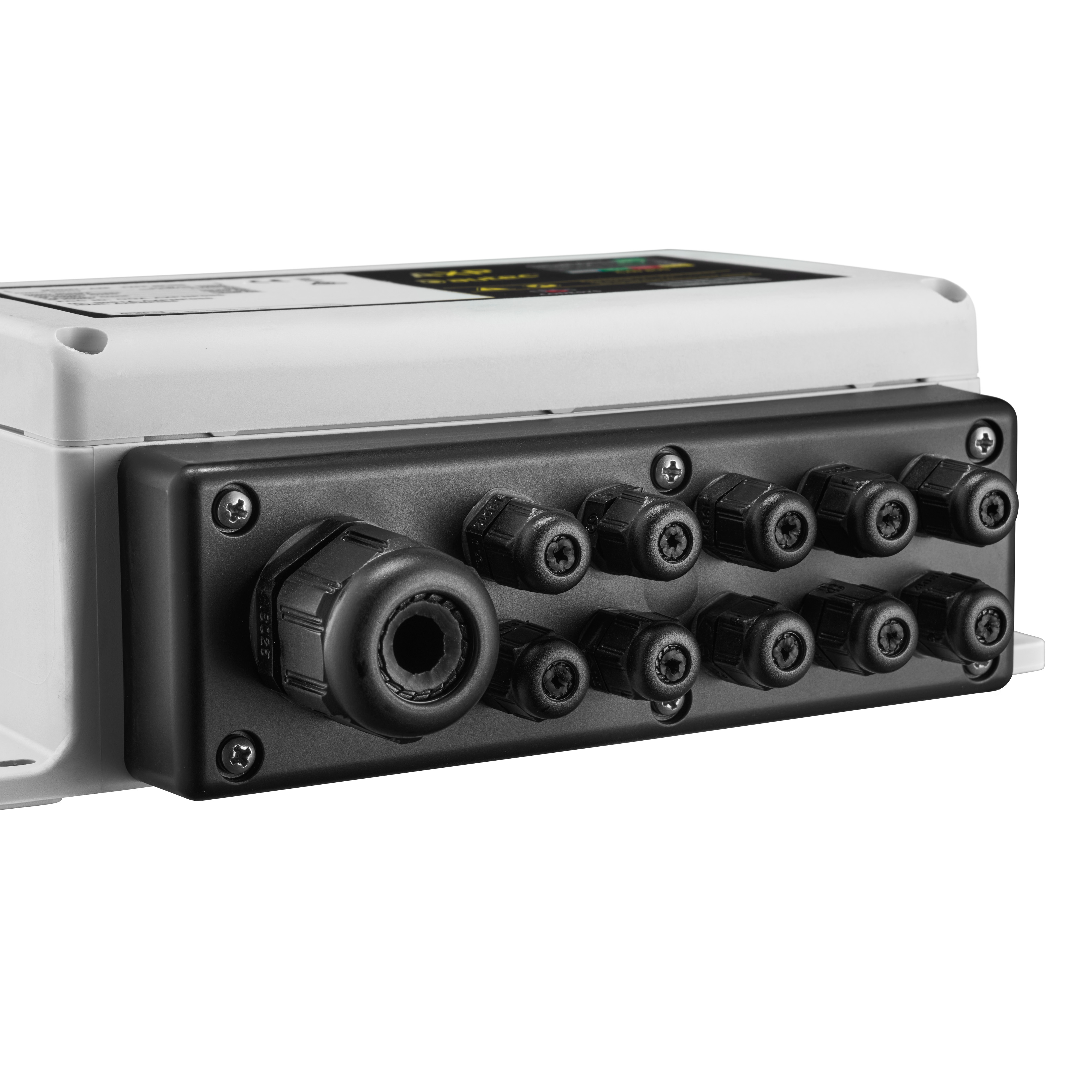

Dynamic+POur AXP Analogue Base Stations are fitted with an 8-30 VDC power supply and are available in both dual-band 870/915 MHz or 2.4 GHz. The AXP comes equipped with 8 voltage outputs, 20 PWM’s (10 bi-directional axis). 20 digital outputs, 2 stop outputs, 2 UFMS outputs, 2 CAN outputs and 10 A/D inputs. Notably the dual CAN outputs allow for the use of CAN Open and J1939 protocols simultaneously. For diagnostics purposes the AXP is suited with 4-digit display on the top plate of the enclosure. Offered with both internal (standard) and external (1m or 3m extensions options) antennas, as well as the ability for customized harnesses for direct connection to solenoids, or 32, 40, 50 and 72-pin plugs for ease of connectivity. Furthermore, the base station can be used in Take/Release applications.

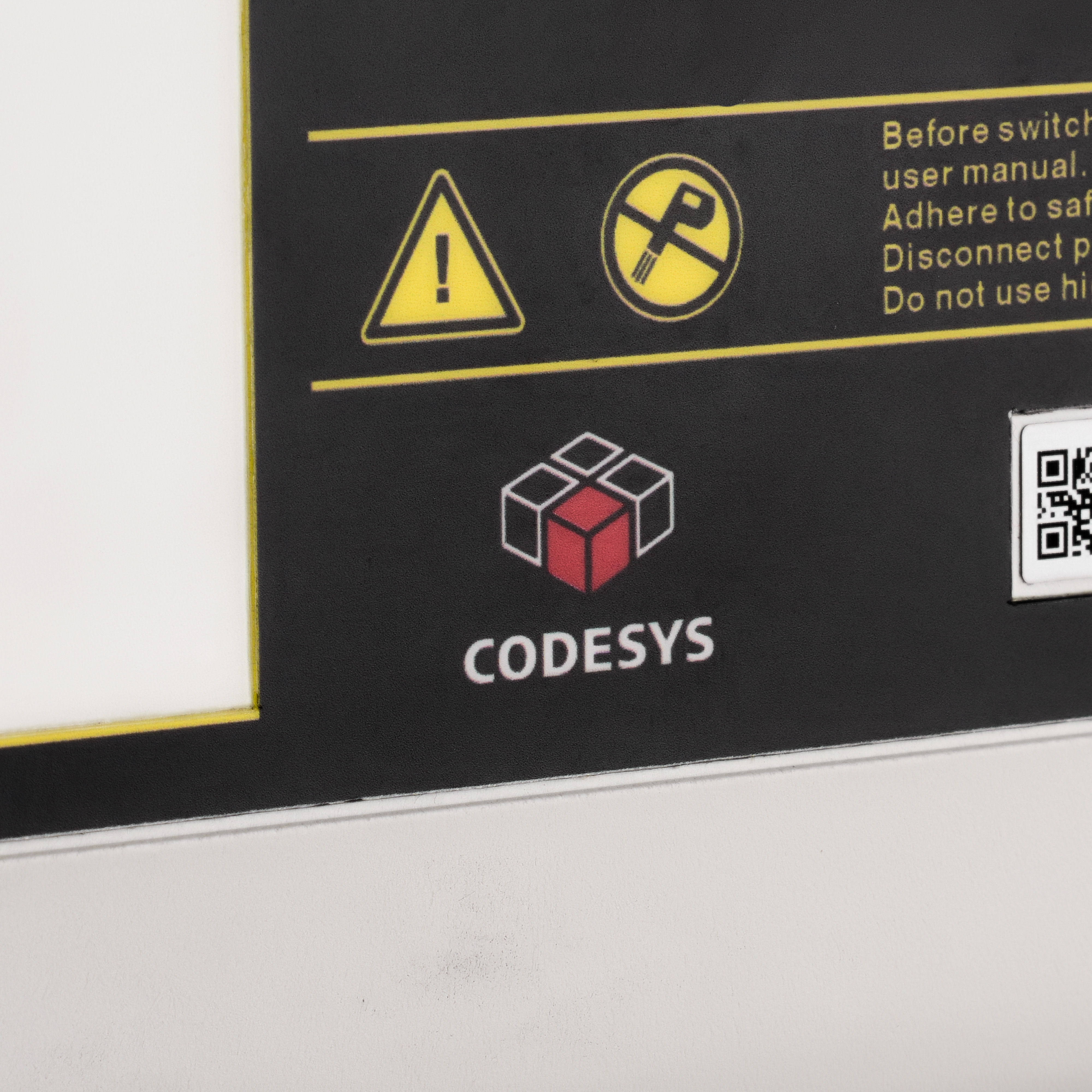

AXP allow the highest flexibility through their CODESYS® development environment, standard for programming according to IEC 61131-3.
