M-PRO PJE

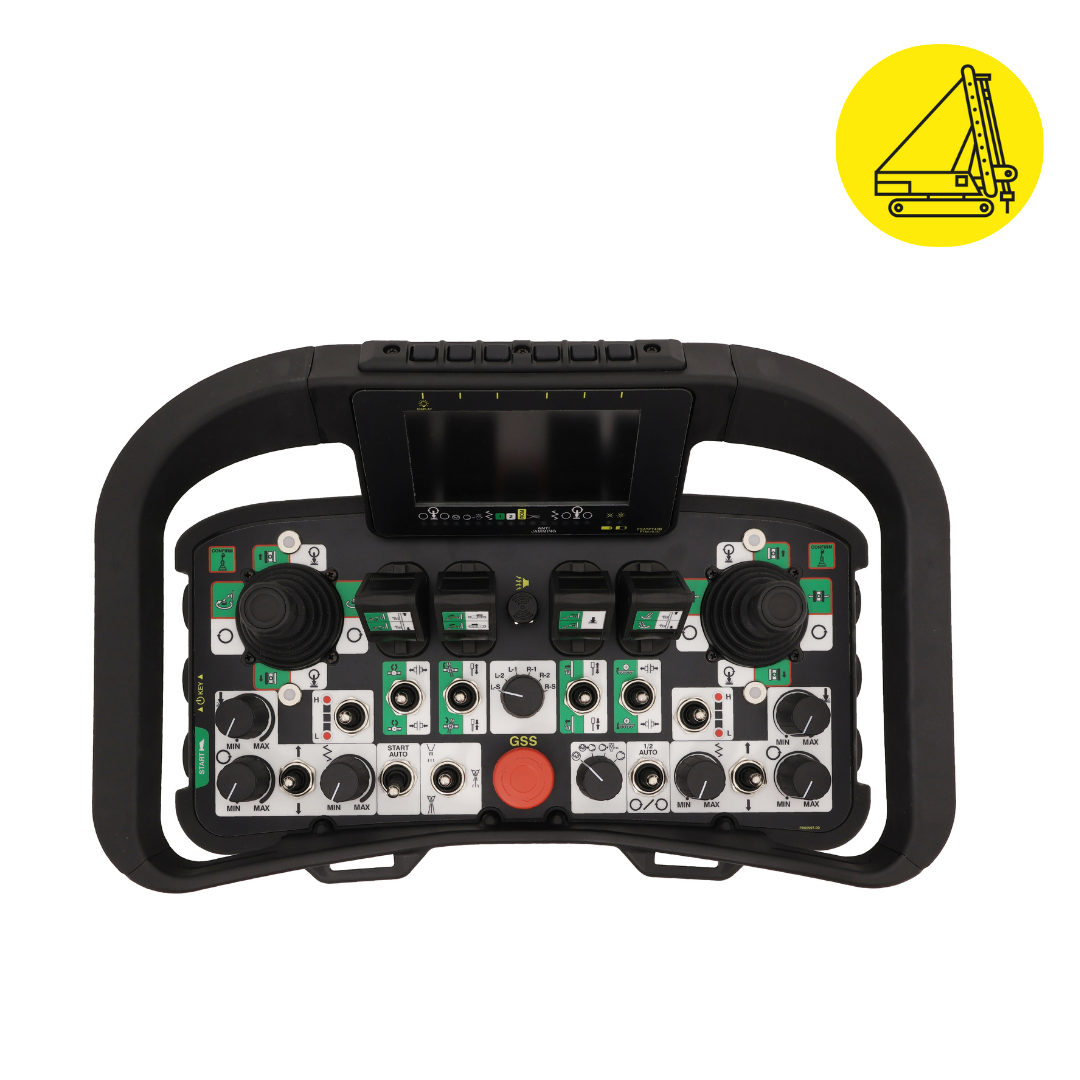

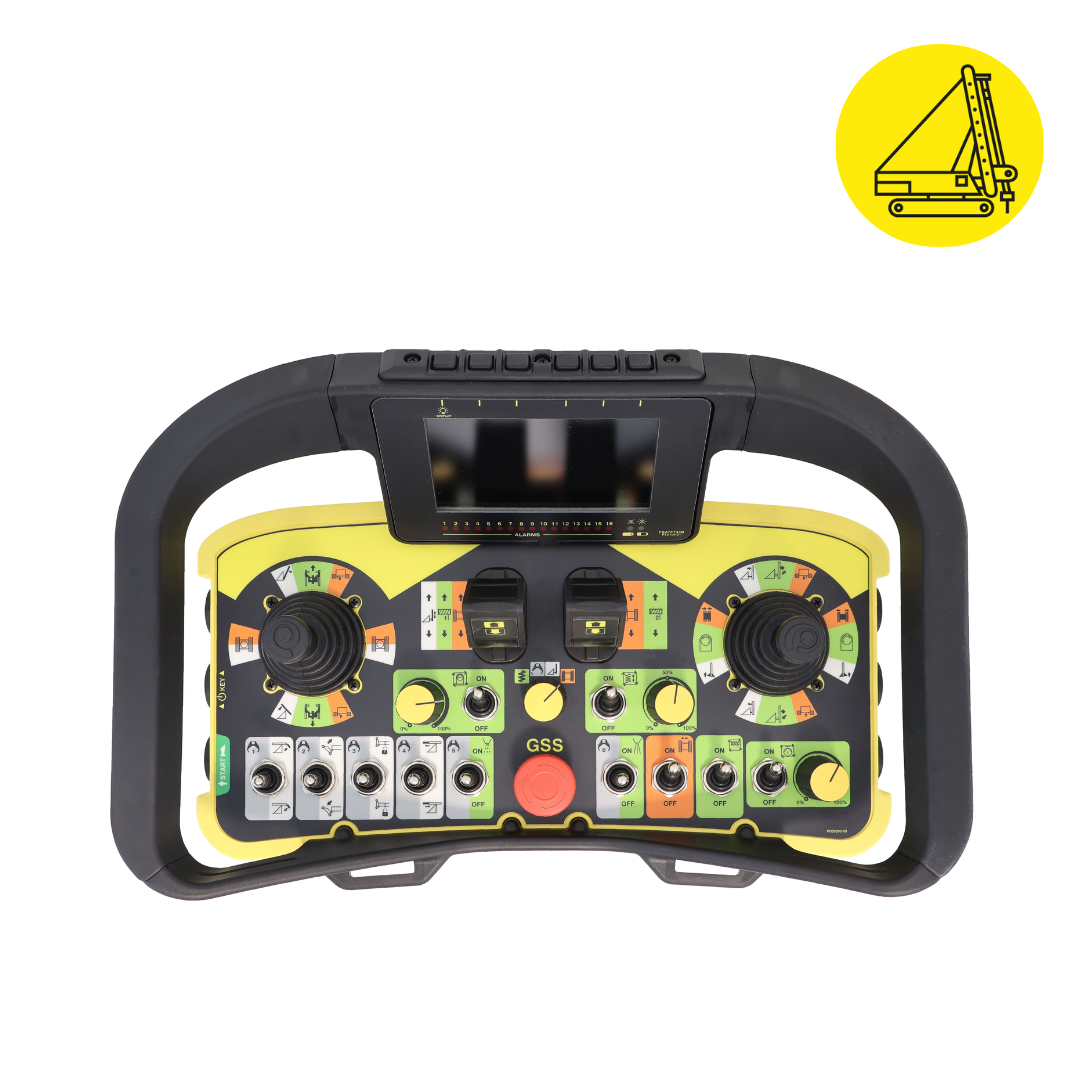

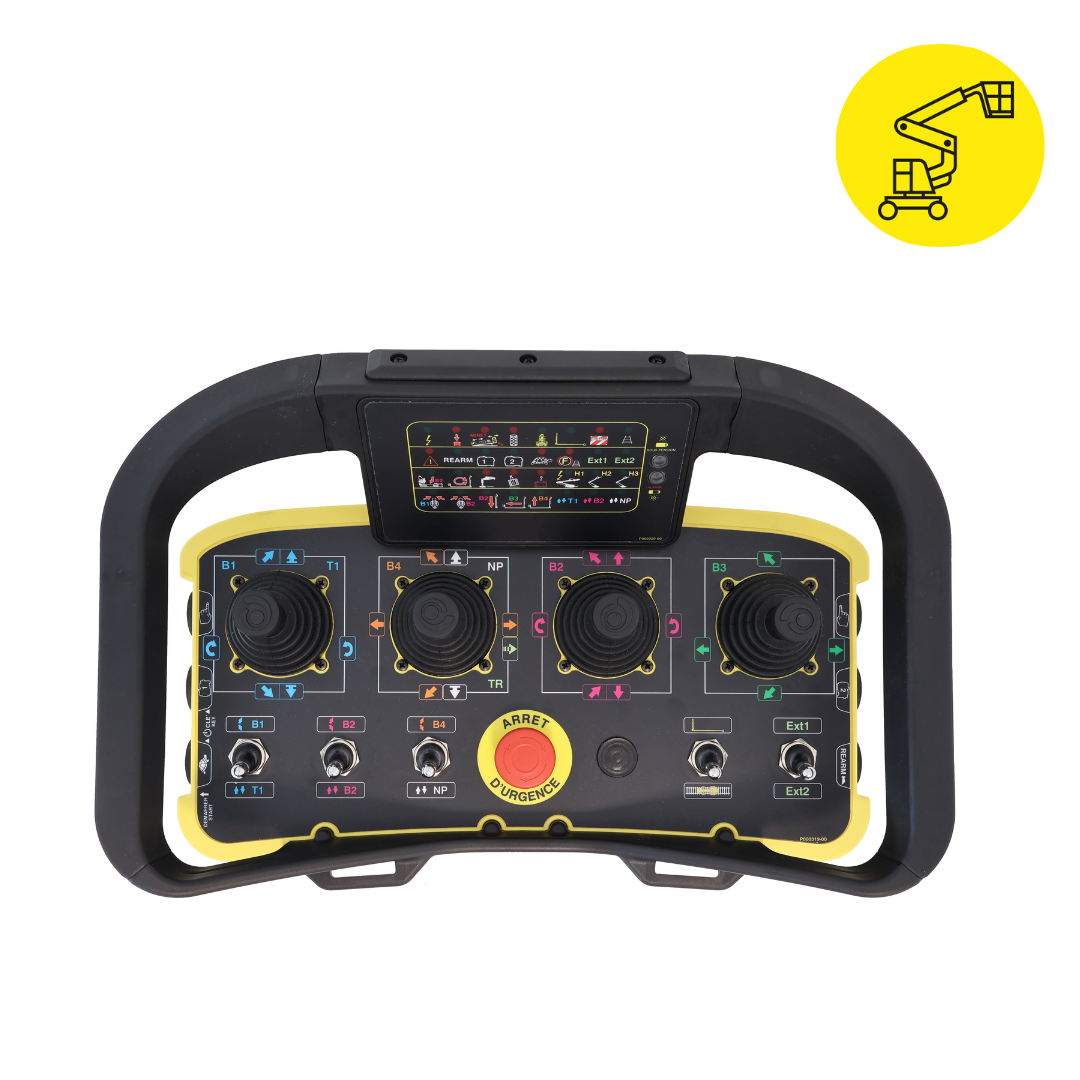

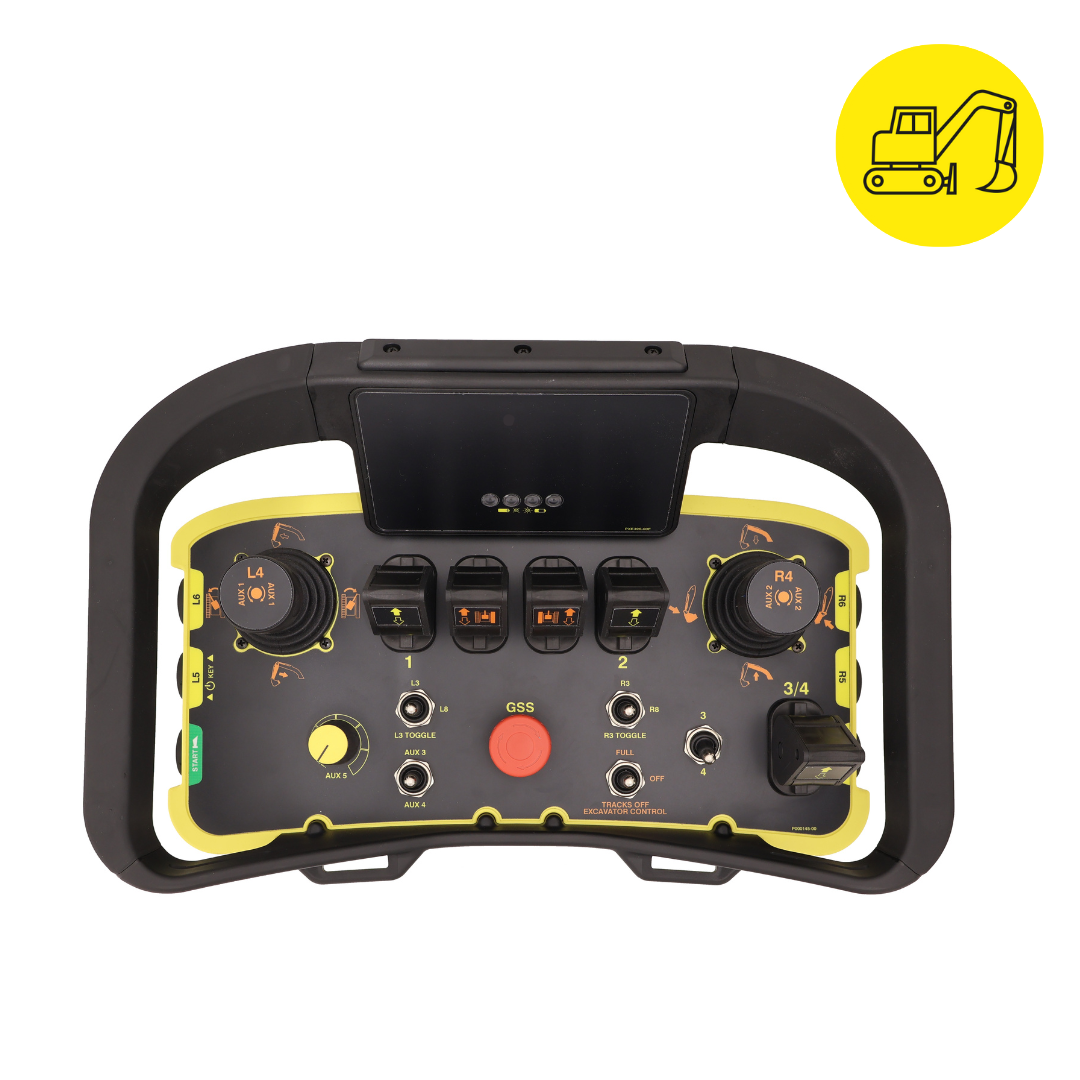

Dynamic+PM-PRO is the AUTEC portable station equipped with a high number of actuators, high control reliability, modern and ergonomic design, and a remarkable battery autonomy. Its frame is optimized to house the 4.3" color display or the new 4.1" monochrome display; 4 to 32 signal LEDs are available as an option. Powered by external Li-Ion battery.
M-PRO operates with FHSS (Frequency Hopping Spread Spectrum) dual band radio connection with automatic free channel search.
Accessories
Waist belt
Shoulder harness
Removable Li-Ion battery and battery charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
Options
4.3" TFT LCD display (480x270 pixels, 65536 colors)
The display features extreme brightness and readability even in particularly sunny conditions. It is programmable via CODESYS or Jmobile. It has 16 signaling LEDs and five or six buttons (depending on the model) for interaction. In addition, an optional encoder is available to facilitate navigation.
4.1" monochrome display (320x160 pixels)
The 4.1" display combines compactness, completeness, and simplicity. The display is in black and white, features 16 white LEDs, and ensures extensive battery life. Including five interaction buttons.
32 LED Matrix
32 diagnostic LEDs are available. The light intensity can be customized, and a NIGHT & DAY mode is also available.
LED on panel
Possibility to insert LEDs on the panel to provide feedback regarding specific maneuvers/selections on the machine.
Cable Control (Tether Cable)
The cable control allows connection of the cable station to the base station via cable, replacing the wireless connection with a wired connection.
External buzzer
The buzzer is used to emit sound signals in certain situations.
IR Sensor
Used to restrict the operating area of the remote control and operator.
Marine environment protection
For marine environment applications, we use corrosion proof components and the remote control is treated with an corrossion proof solvent, ensuring lasting protection against corrosion and damage caused by salt and humidity.
Zero-G sensor
The Zero-G sensor activates in case of impact, throwing, rolling, falling from a height of over 1 meter, or tilting beyond a preset angle of the transmitting unit.
