PJB

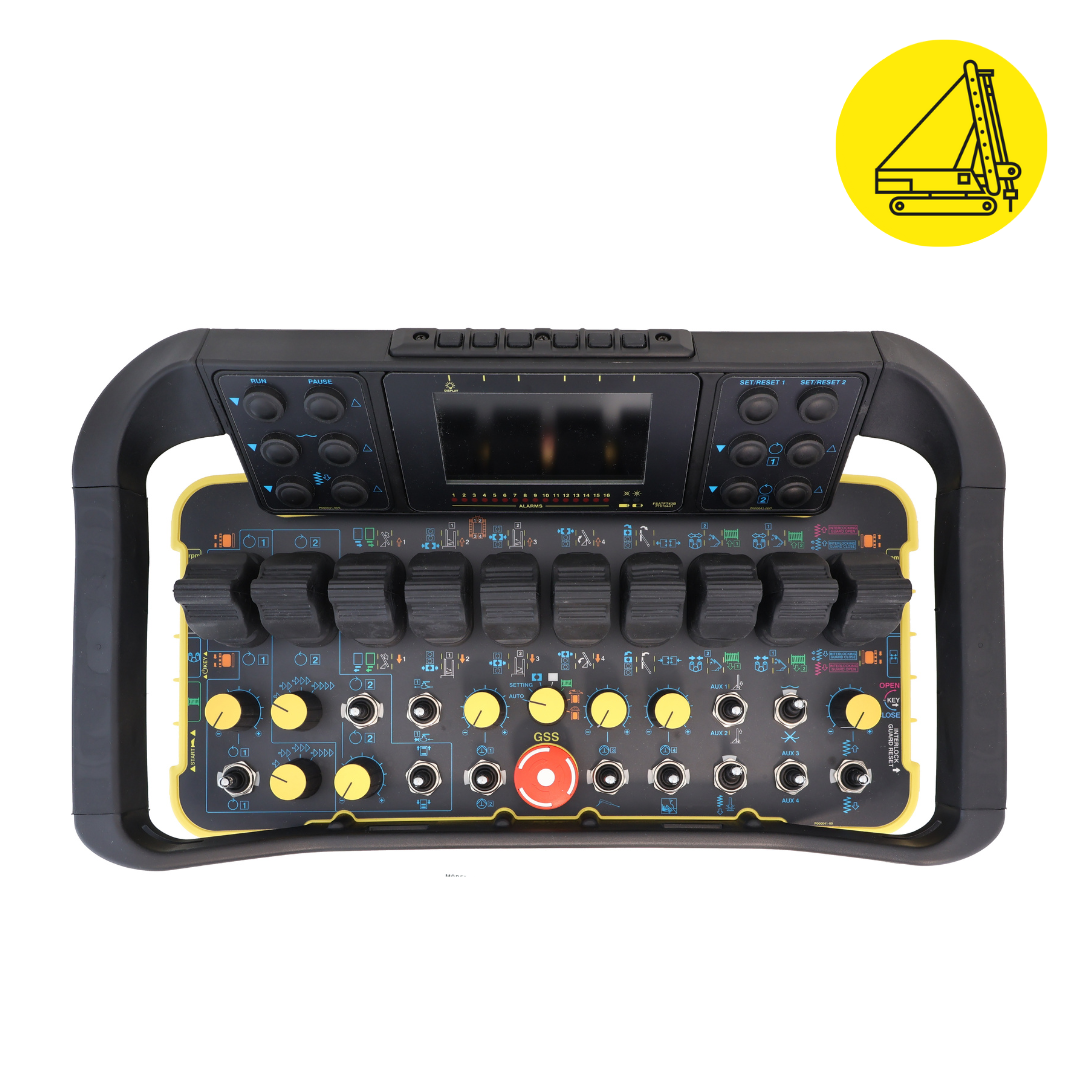

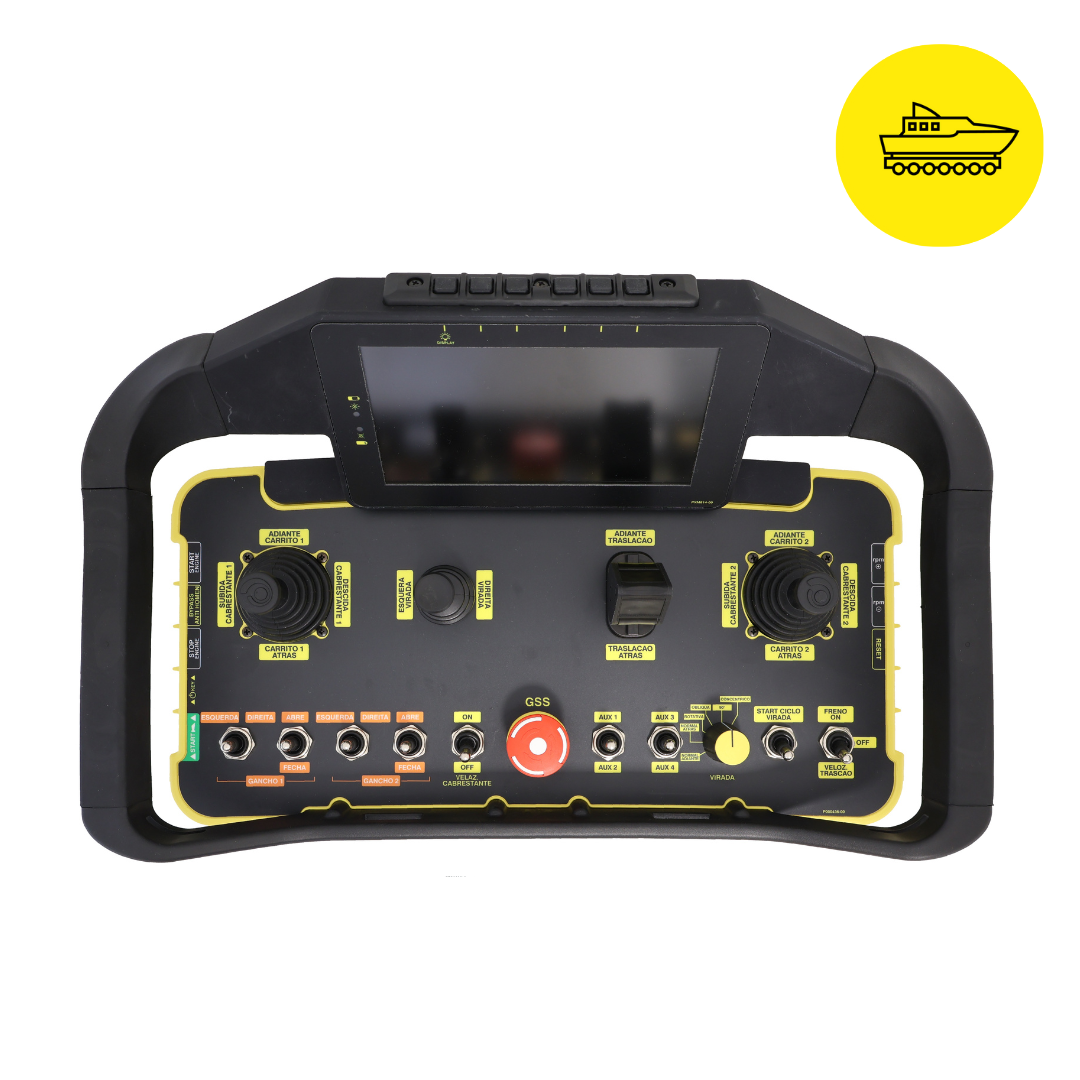

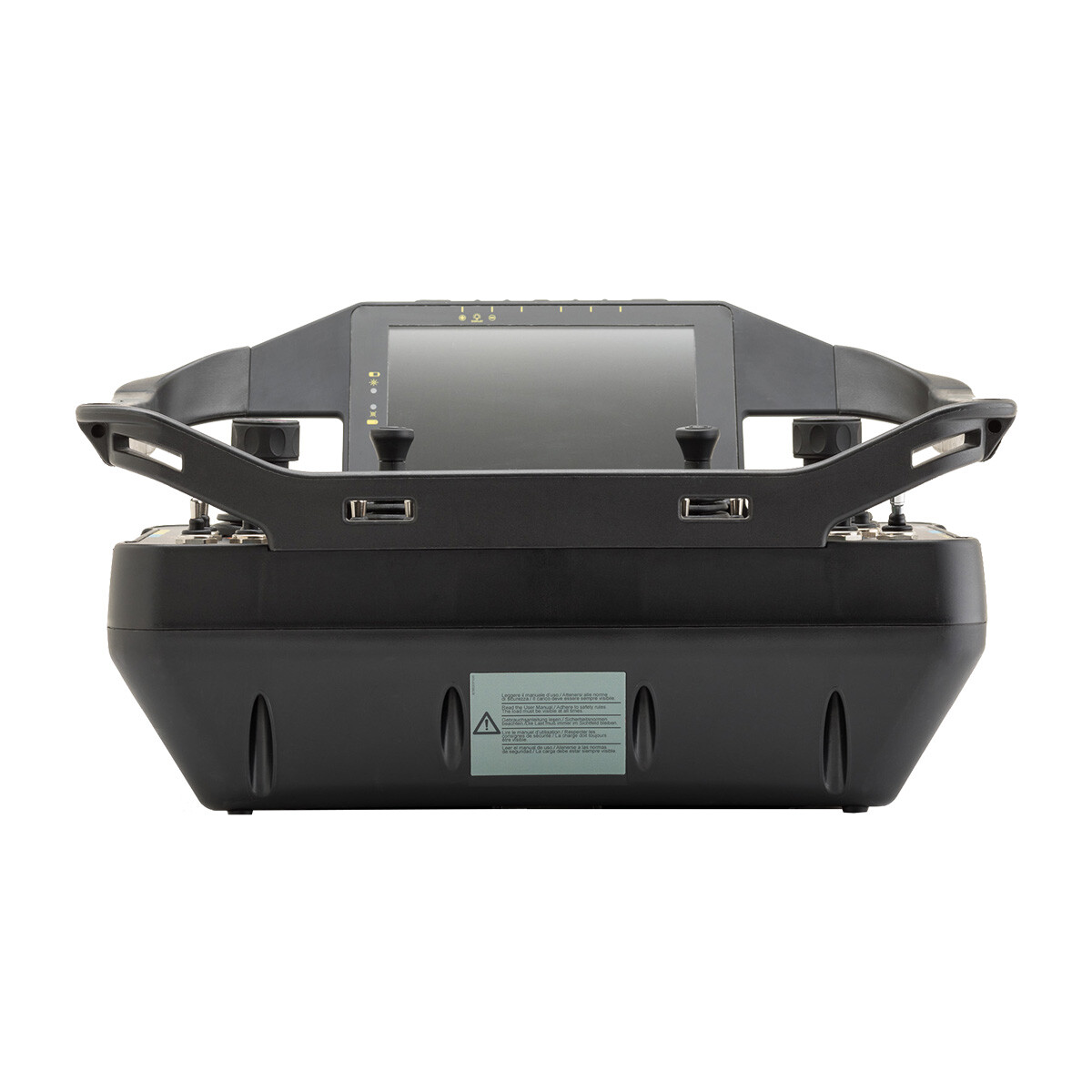

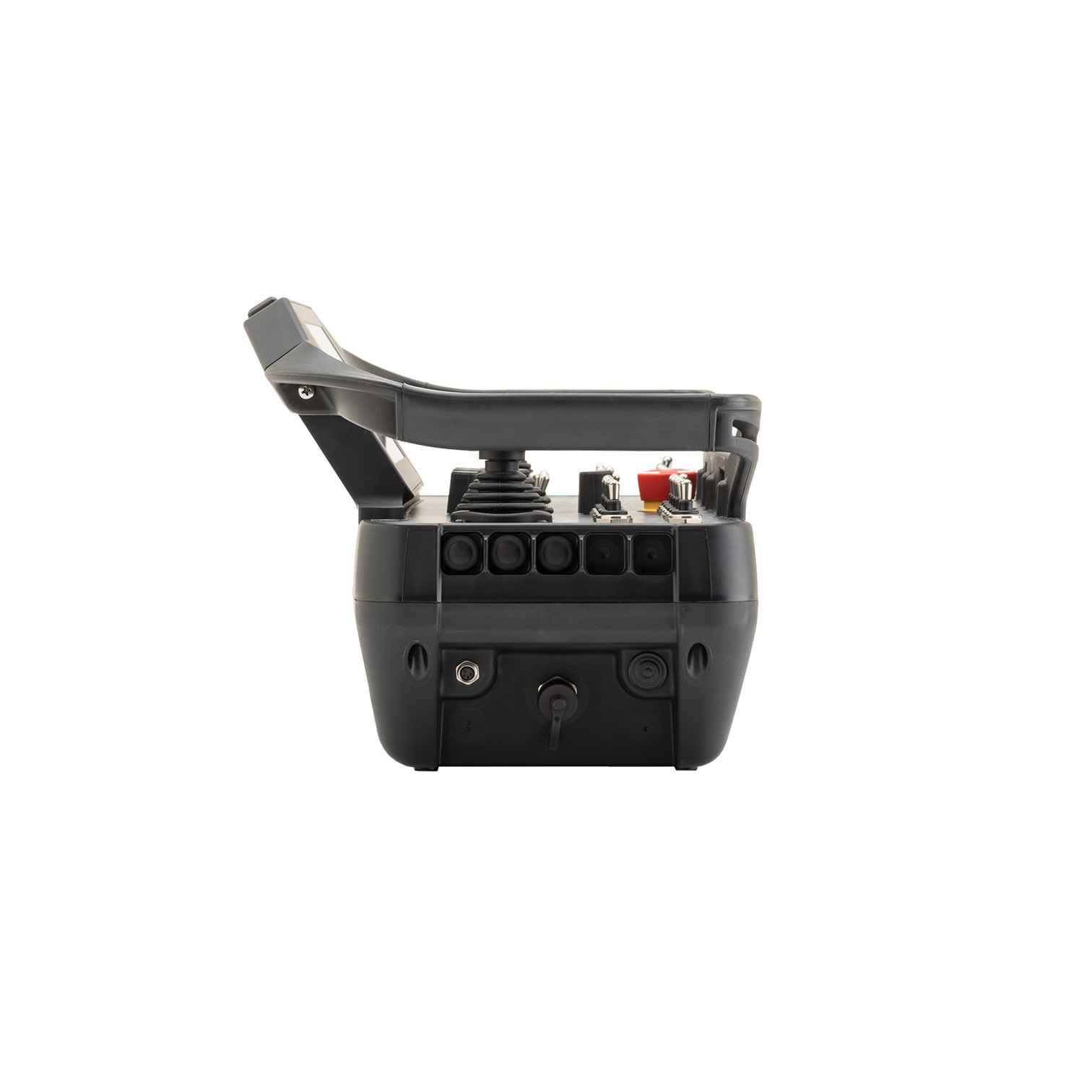

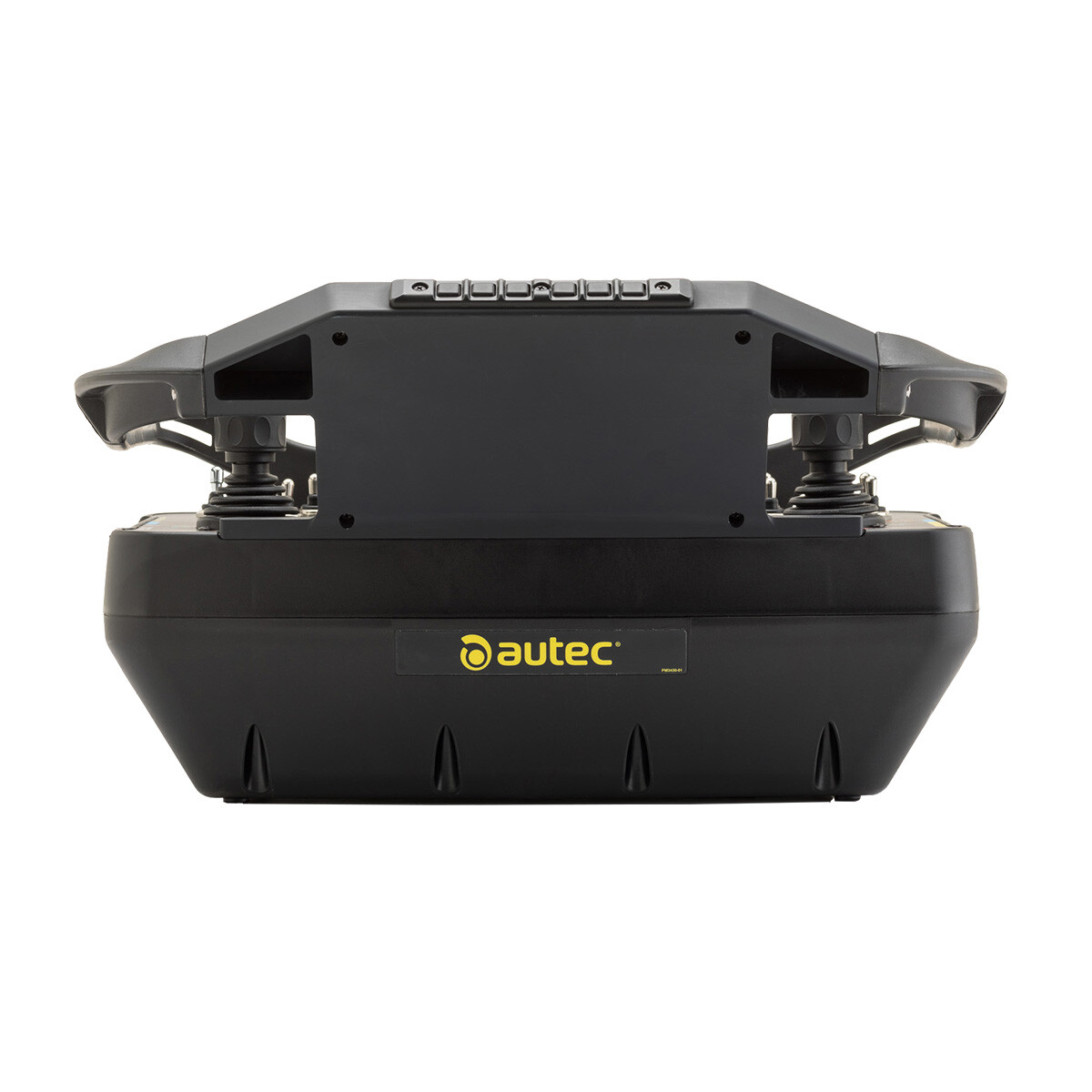

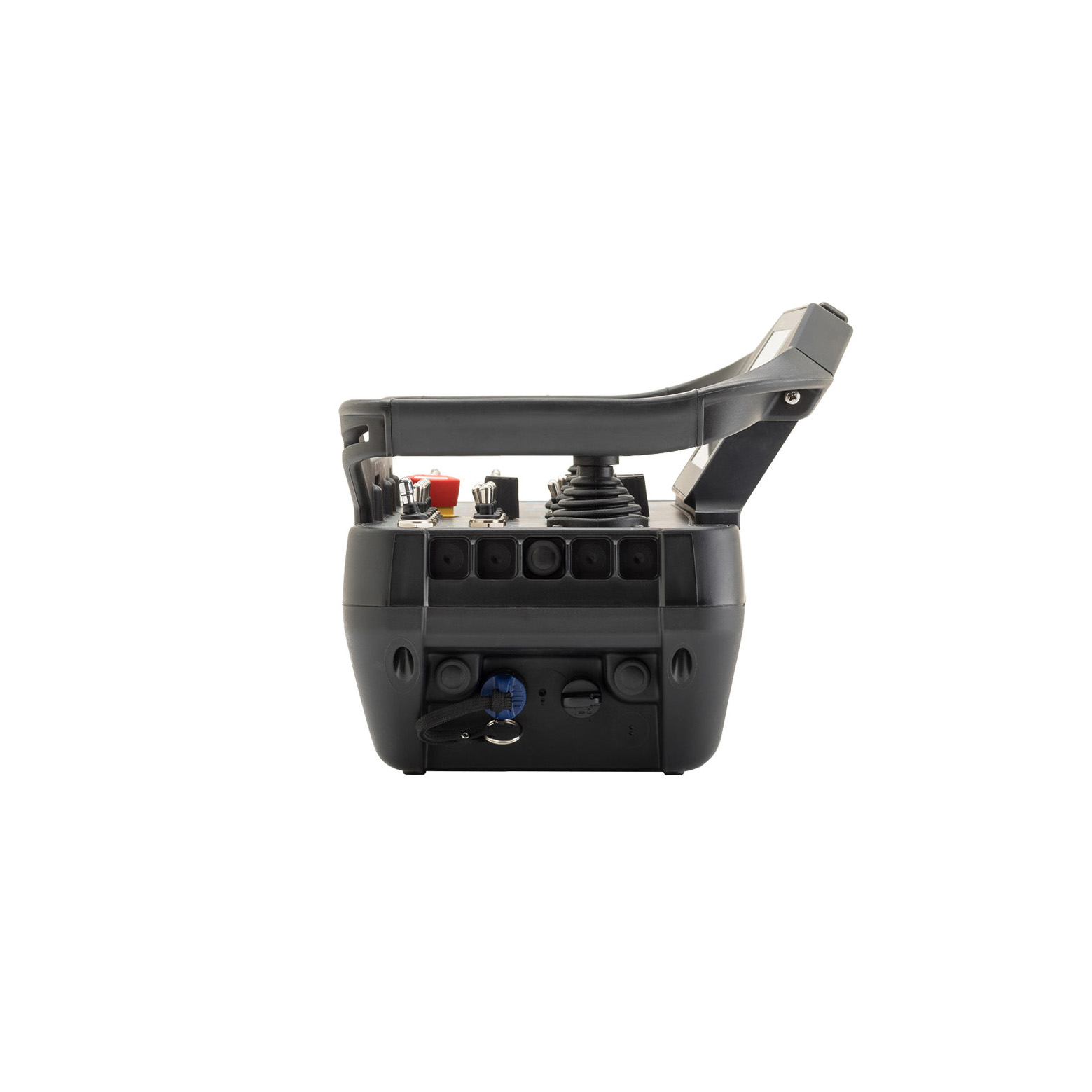

Dynamic+PThe highly configurable PJB transmitting unit is suitable for heavy duty environments. It has a large number of controls and are sturdy, a characteristic of all AUTEC products.
This joystick transmitting unit, which is user friendly thanks to a portable system specially designed to assist the operator, has up to 12 proportional controls and up to
64 digital controls with a data feedback option that shows the information received from the machine on a colour graphic display or panel LED.
Accessories
Back strap
Removable Li-Ion battery and battery charger
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
Options
4.3" TFT LCD display (480x270 pixels, 65536 colors)
The display features extreme brightness and readability even in particularly sunny conditions. It is programmable via CODESYS or Jmobile. It has 16 signaling LEDs and five or six buttons (depending on the model) for interaction. In addition, an optional encoder is available to facilitate navigation.

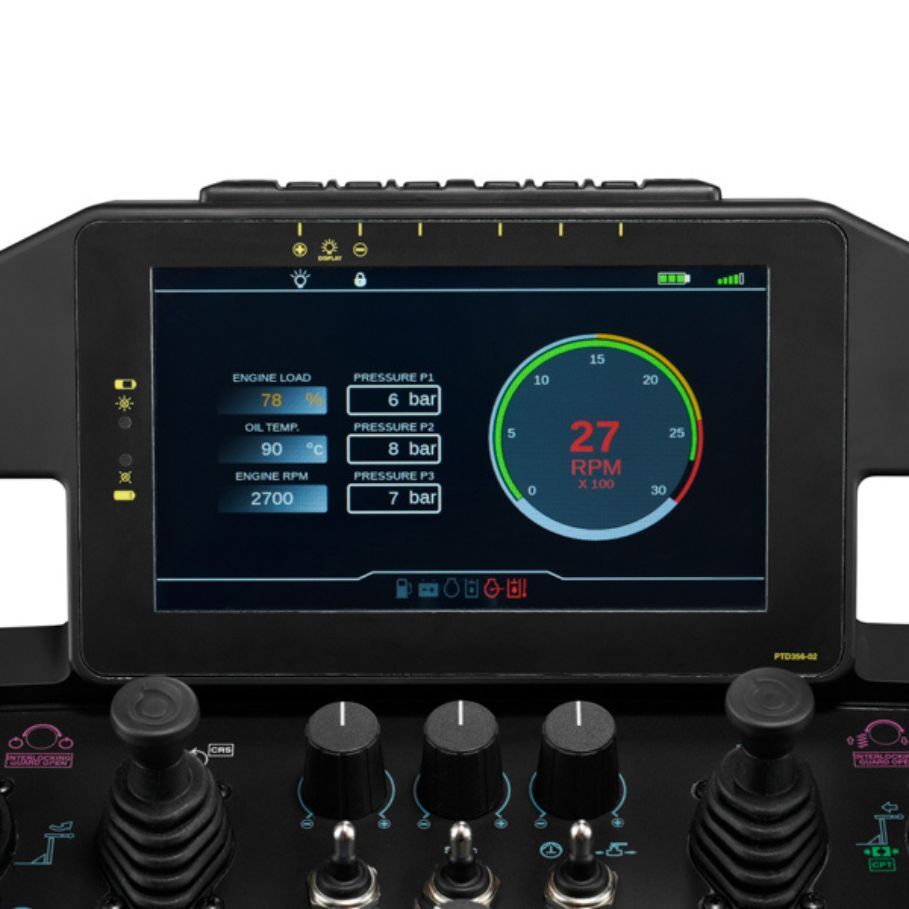

7" TFT LCD display (800x480 pixels, 65536 colors)
The 7" display is ideal for displaying numerous operating parameters of the remote-controlled machine. It is programmable via CODESYS or Jmobile, allowing the customer extensive configurability of the system. Six buttons are available for interaction. In addition, an optional encoder is available to facilitate navigation.

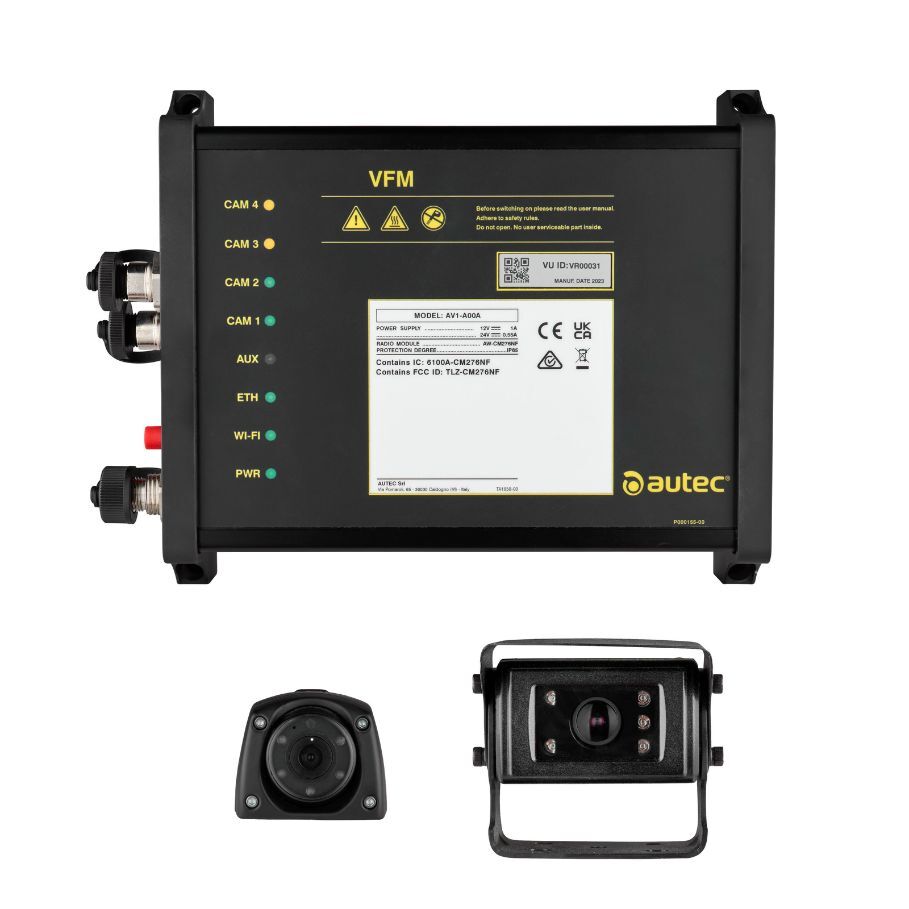

VFM System (Video Feedback Module)
The system is designed to enhance work efficiency, allowing the display of up to four cameras (a maximum of two simultaneously) in color in real-time directly on the remote control display.
LED on panel
Possibility to insert LEDs on the panel to provide feedback regarding specific maneuvers/selections on the machine.
Cable Control (Tether Cable)
The cable control allows connection of the cable station to the base station via cable, replacing the wireless connection with a wired connection.
External buzzer
The buzzer is used to emit sound signals in certain situations.
IR Sensor
Used to restrict the operating area of the remote control and operator.
Tilt or impact sensor
Sensor activates in case of tilt or ground impact of the portable station.
Marine environment protection
For marine environment applications, we use corrosion proof components and the remote control is treated with an corrossion proof solvent, ensuring lasting protection against corrosion and damage caused by salt and humidity.
Removable magnetic ignition key
M-key magnetic key for remote control ignition.
