COMPACT PJC

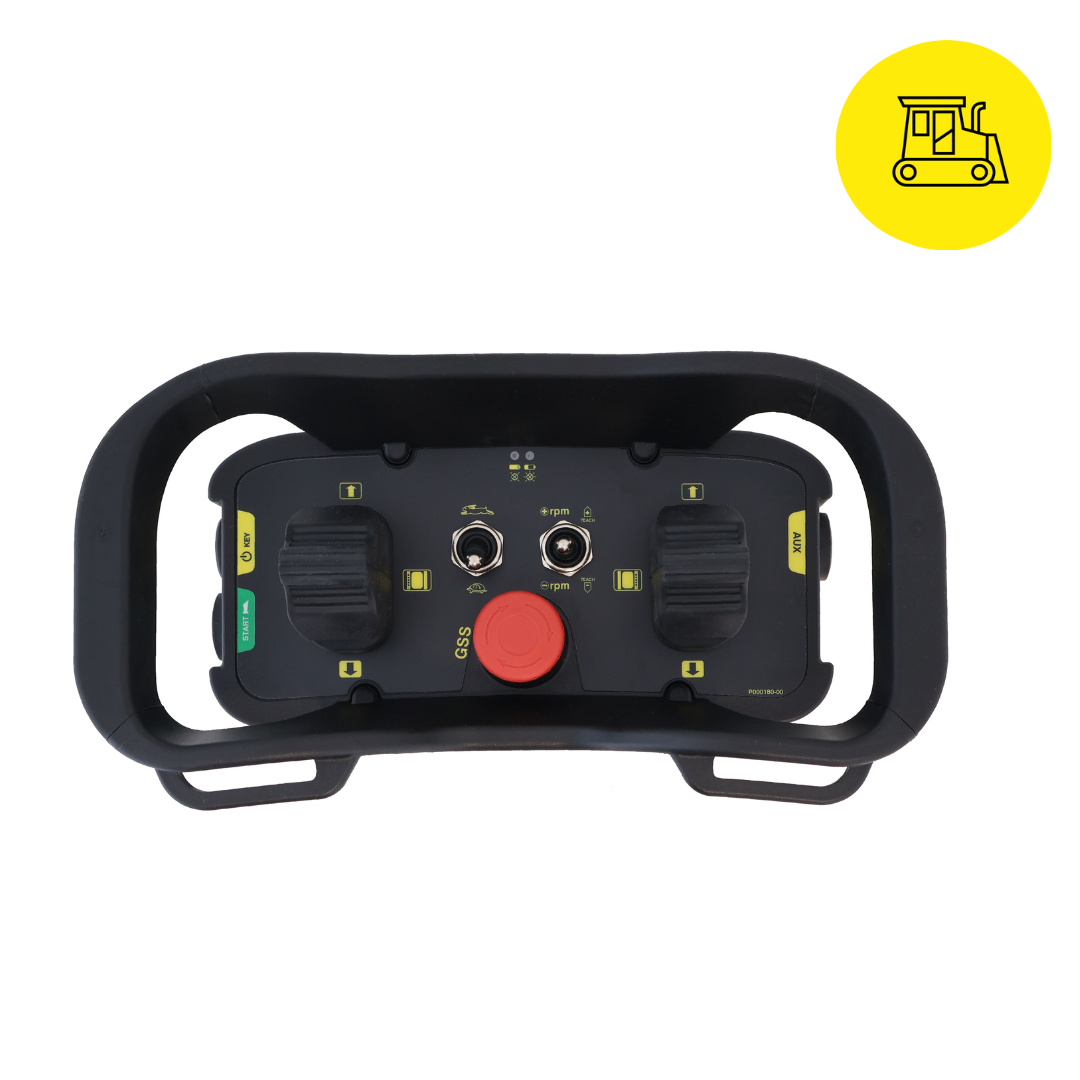

Dynamic+PCOMPACT is a transmitting unit used for the remote control of machinery in different sectors.

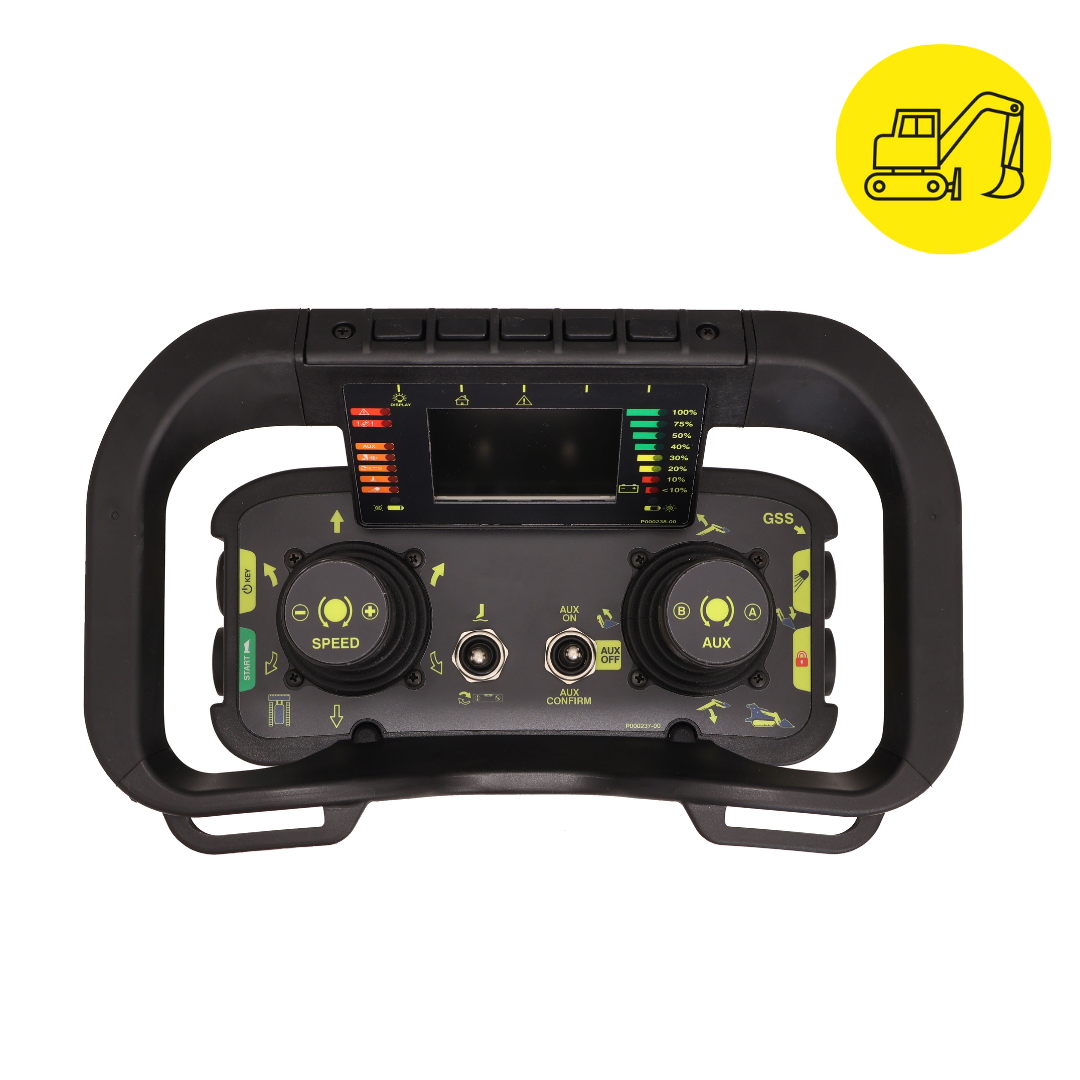

With a reliable radio link and compliance with functional safety requirements, this "compact" transmitter which can be carried on a waist belt or shoulder strap is suitable for use in difficult working environments. Designed with an ergonomic shape to prevent involuntary activation and issues caused by external interference when in use, its working area is optimized so that the actuators on the top and sides can be easily accessed/held. The upper frame has comfortable rubber handles and a 2.8" TFT colour display.
Mechanical and chemical resistance is guaranteed in all configurations as well as an IP65 protection degree and drop resistance of 1.5 m.
Accessories
Shoulder harness or waist belt
Removable NiMH or Li-Ion battery and battery charger
Options
2.8" TFT LCD display (240x320 pixels, 65536 colours)
32 signalling LEDs
LEDs on panel
Cable control
External buzzer
IR sensor
Marine environment protection
M-Key removable magnetic power keyswitch
Actuators
Potentiometer
Rotary switch
Toggle switch
Pull-to-operate toggle switch
Side button
Options
2.8" TFT LCD display (320x240 pixels, 65536 colors)
The display is equipped with 16 LEDs and includes five buttons for interaction. An optional encoder is also available to facilitate navigation. Suitable for both indoor and outdoor environments.
IR Sensor
Used to restrict the operating area of the remote control and operator.
32 LED Matrix
32 diagnostic LEDs are available. The light intensity can be customized, and a NIGHT & DAY mode is also available.
External buzzer
The buzzer is used to emit sound signals in certain situations.
LED on panel
Possibility to insert LEDs on the panel to provide feedback regarding specific maneuvers/selections on the machine.
Removable mechanical ignition key
If the portable station does not have Key ID 0-1, it is possible to install the removable mechanical ignition key.
Cable Control (Tether Cable)
The cable control allows connection of the cable station to the base station via cable, replacing the wireless connection with a wired connection.
Marine environment protection
For marine environment applications, we use corrosion proof components and the remote control is treated with an corrossion proof solvent, ensuring lasting protection against corrosion and damage caused by salt and humidity.
