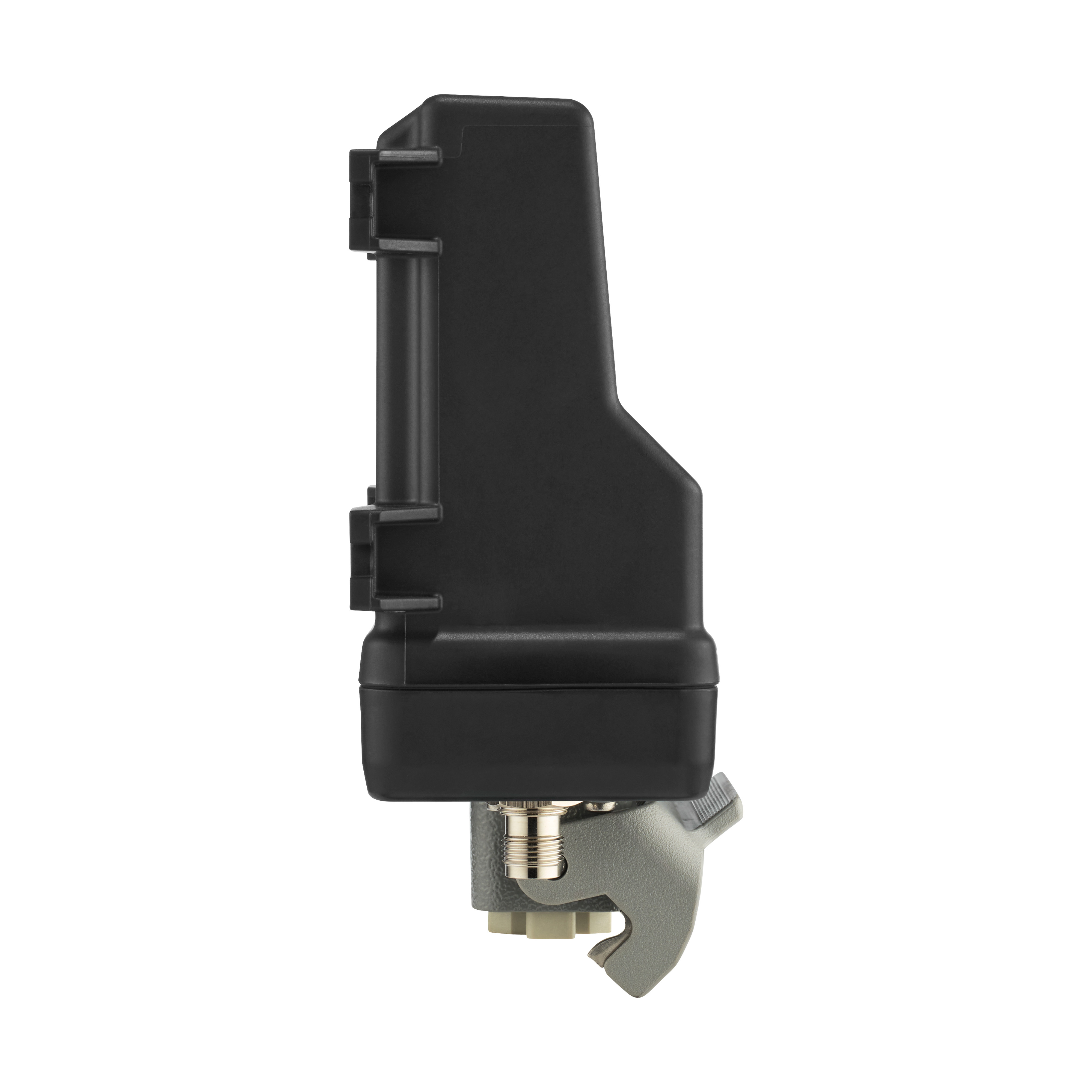

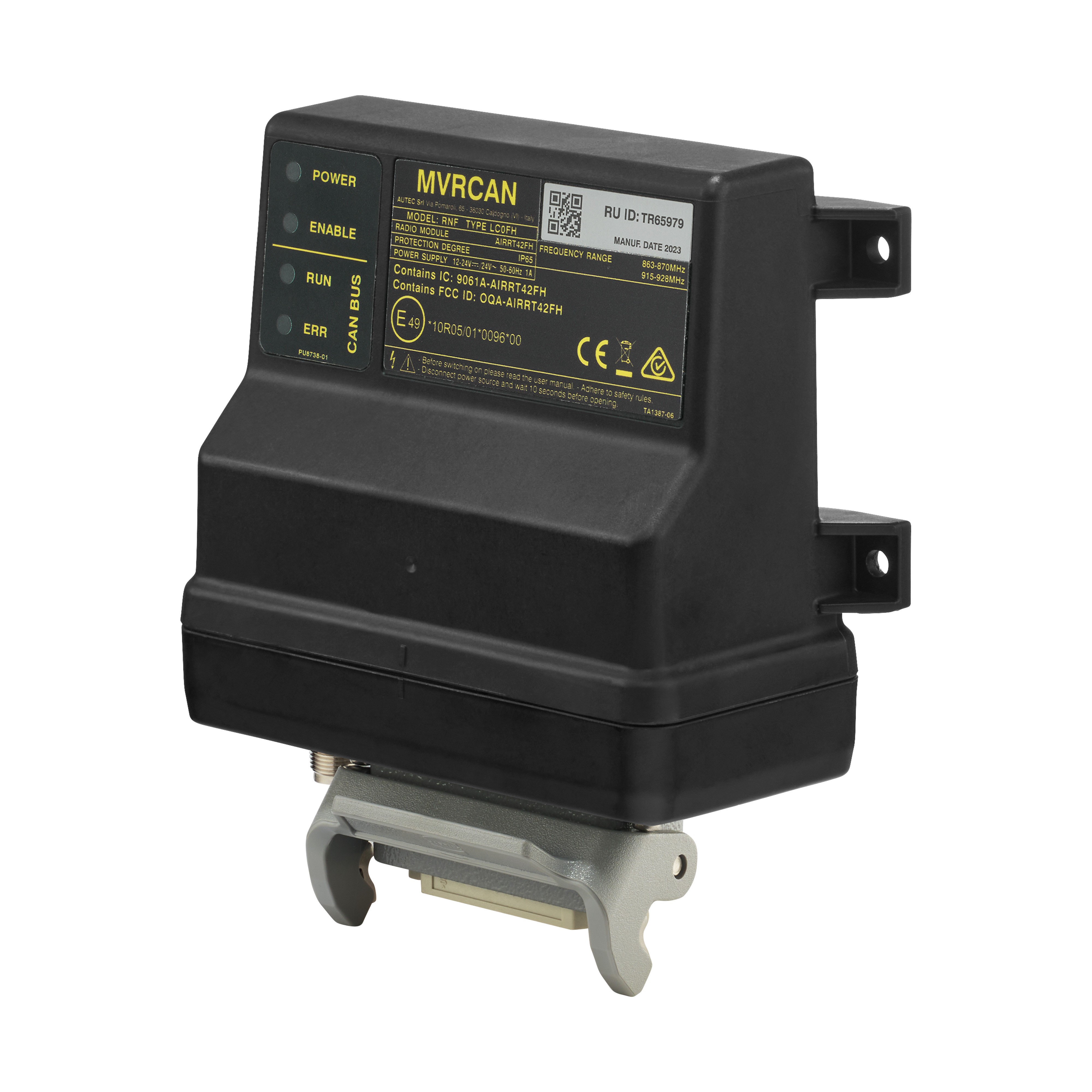

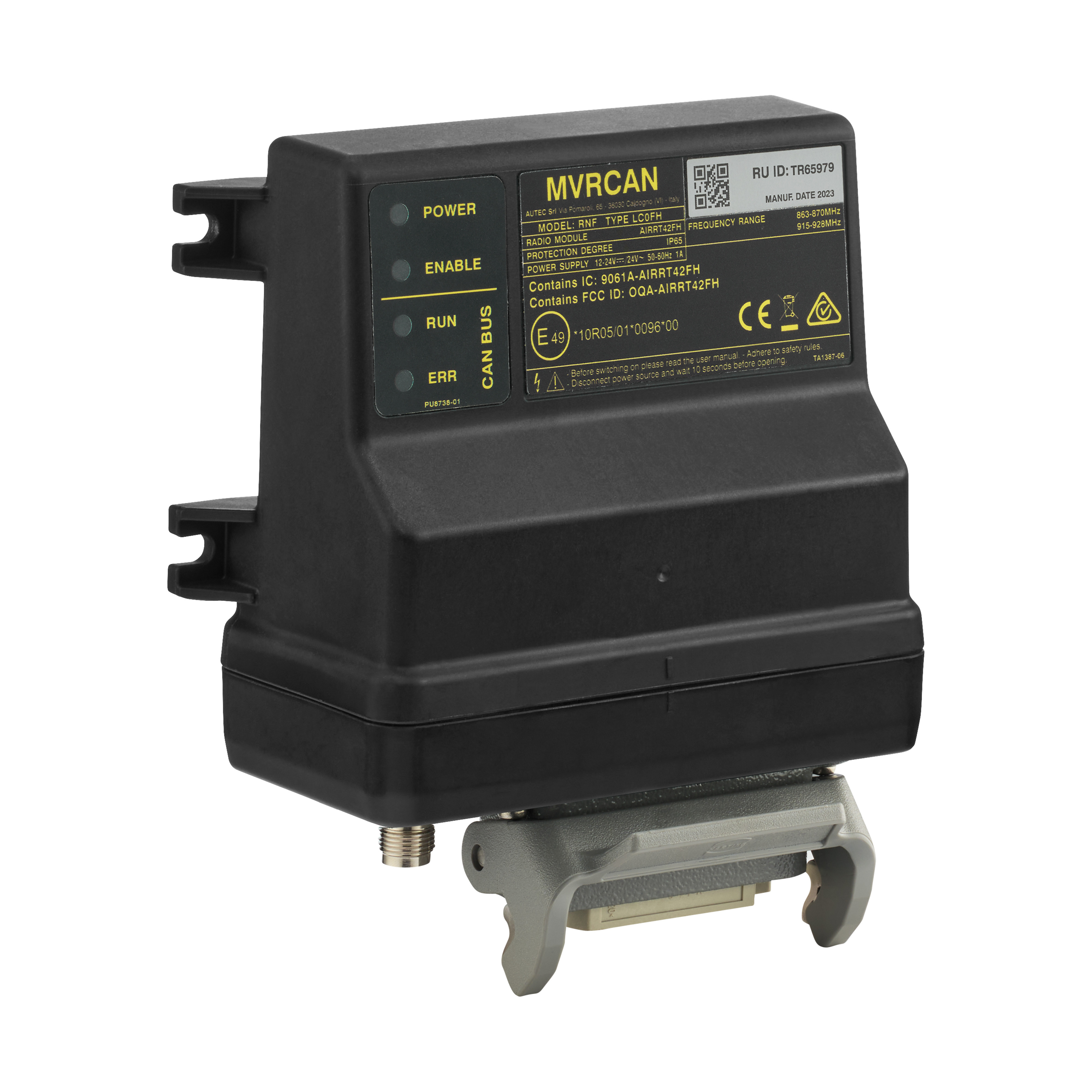

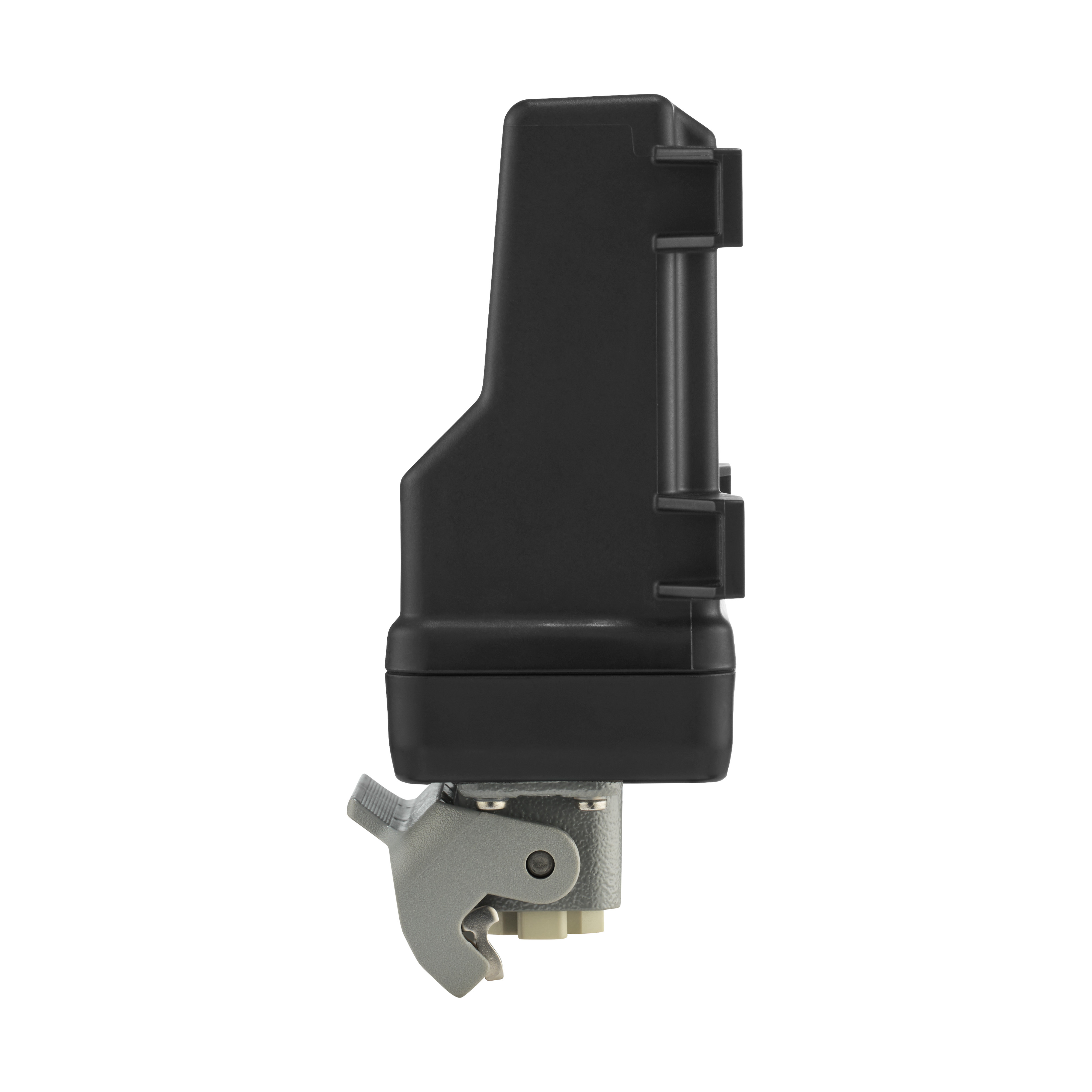

MVRCAN

Air
Receiving unit AC/DC power. I/O serial CANopen 2.0. Has 4 programmable relays + STOP. External antenna comes standard.
TECHNICAL DATA SHEET CONTACT US

TECHNICAL DATA SHEET

Power supply
12-24 VDC
24 VAC
Antenna
External
Internal optional
I/O serial
CAN Open 2.0
Max number of outputs
4 on/off + STOP
Commands rated current
4 A (250 VAC)
Rated current of STOP / Safety outputs
6 A (30 VDC)
Safety performance of the STOP function (EN ISO 13849-1)
up to PL d

Protection degree
IP65 (NEMA 4)
Operating and storage temperature
operating: (-20°C) ÷ (+70°C) / (-4°F) ÷ (+158°F)
storage: (-40°C) ÷ (+70°C) / (-40°F) ÷ (+158°F)

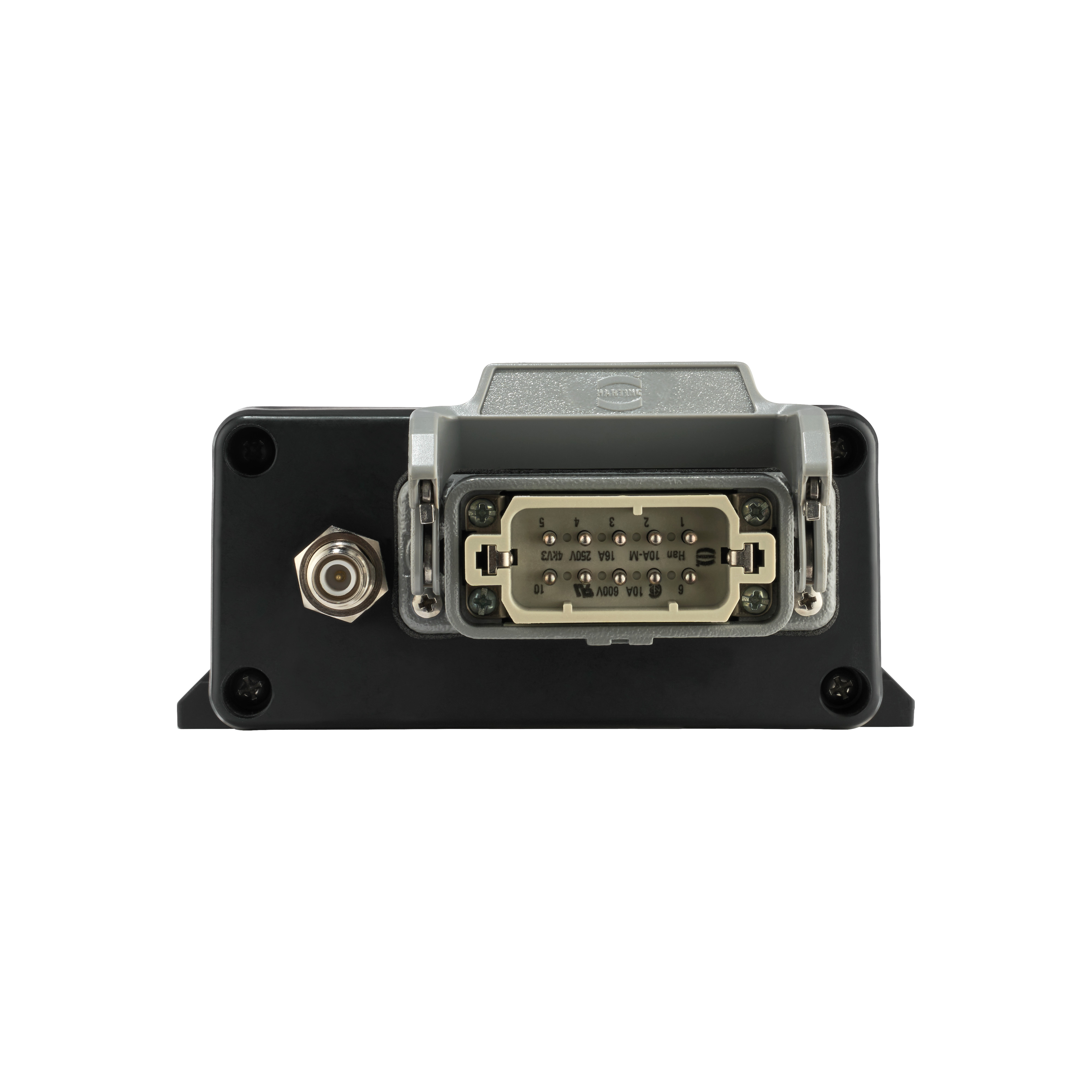

Connecting interfaces
10-pin reduced plug
Dimensions
144 x 162 x 85 mm
5.67 x 6.38 x 3.35 in

Weight
650 g
1.43 lb

Contact us for customized support.
